Welcome to shenfun’s documentation!¶
Shenfun is a high performance computing platform for solving partial differential equations (PDEs) by the spectral Galerkin method. The user interface to shenfun is very similar to FEniCS, but applications are limited to multidimensional tensor product grids, using either Cartesian or curvilinear grids (polar/cylindrical/spherical). The code is parallelized with MPI through the mpi4py-fft package.
Shenfun enables fast development of efficient and accurate PDE solvers (spectral order and accuracy), in the comfortable high-level Python language. The spectral accuracy is ensured by using high-order global orthogonal basis functions (Fourier, Legendre, Chebyshev, Laguerre and Hermite), as opposed to finite element codes that are using low-order local basis functions. Efficiency is ensured through vectorization (Numpy), parallelization (mpi4py) and by moving critical routines to Cython or Numba. Shenfun has been used to run turbulence simulations (Direct Numerical Simulations) on thousands of processors on high-performance supercomputers, see the spectralDNS repository.
Document build status¶
Introduction¶
Spectral Galerkin¶
The spectral Galerkin method solves partial differential equations through a special form of the method of weighted residuals (WRM). As a Galerkin method it is very similar to the finite element method (FEM). The most distinguishable feature is that it uses global shape functions, where FEM uses local. This feature leads to highly accurate results with very few shape functions, but the downside is much less flexibility when it comes to computational domain than FEM.
Consider the Poisson equation with a right hand side function \(f(\boldsymbol{x})\)
To solve this equation, we will eventually need to supplement appropriate boundary conditions. However, for now just assume that any valid boundary conditions (Dirichlet, Neumann, periodic).
With the method of weighted residuals we attempt to find \(u(\boldsymbol{x})\) using an approximation, \(u_N\), to the solution
Here the \(N\) expansion coefficients \(\hat{u}_k\) are unknown and \(\{\phi_k\}_{k\in \mathcal{I}^N}, \mathcal{I}^N = 0, 1, \ldots, N-1\) are trial functions. Inserting for \(u_N\) in Eq. (1) we get a residual
With the WRM we now force this residual to zero in an average sense using test function \(v(\boldsymbol{x})\) and weight function \(w(\boldsymbol{x})\)
where \(\overline{v}\) is the complex conjugate of \(v\). If we now choose the test functions from the same space as the trial functions, i.e., \(V_N=span\{\phi_k\}_{k\in \mathcal{I}^N}\), then the WRM becomes the Galerkin method, and we get \(N\) equations for \(N\) unknowns \(\{\hat{u}_k\}_{k\in \mathcal{I}^N}\)
Note that this is a regular linear system of algebra equations
where the matrix \(A \in \mathbb{R}^{N \times N}\).
The choice of basis functions \(v(\boldsymbol{x})\) is highly central to the method. For the Galerkin method to be spectral, the basis is usually chosen as linear combinations of Chebyshev, Legendre, Laguerre, Hermite, Jacobi or trigonometric functions. In one spatial dimension typical choices for \(\phi_k\) are
where \(T_k, L_k\) are the \(k\)’th Chebyshev polynomial of the first kind and the \(k\)’th Legendre polynomial, respectively. Note that the second and fourth functions above satisfy the homogeneous Dirichlet boundary conditions \(\phi_k(\pm 1) = 0\), and as such these basis functions may be used to solve the Poisson equation (1) with homogeneous Dirichlet boundary conditions. Similarly, two basis functions that satisfy homogeneous Neumann boundary condition \(u'(\pm 1)=0\) are
Shenfun contains classes for working with several such bases, to be used for different equations and boundary conditions.
Complete demonstration programs that solves the Poisson equation (1), and some other problems can be found by following these links
Tensor products¶
If the problem is two-dimensional, then we need two basis functions, one per dimension. If we call the basis function along \(x\)-direction \(\mathcal{X}(x)\) and along \(y\)-direction \(\mathcal{Y}(y)\), a test function can then be computed as
If we now have a problem that has Dirichlet boundaries in the \(x\)-direction and periodic boundaries in the \(y\)-direction, then we can choose \(\mathcal{X}_k(x) = T_k-T_{k+2}\), for \(k \in \mathcal{I}^{N-2}\) ( with \(N-2\) because \(T_{k+2}\) then equals \(T_{N}\) for \(k=N-2\)), \(\mathcal{Y}_l(y) = \exp(\imath l y)\) for \(l \in \mathcal{I}^M\) and a tensor product test function is then
In other words, we choose one test function per spatial dimension and create global basis functions by taking the outer products (or tensor products) of these individual test functions. Since global basis functions simply are the tensor products of one-dimensional basis functions, it is trivial to move to even higher-dimensional spaces. The multi-dimensional basis functions then form a basis for a multi-dimensional tensor product space. The associated domains are similarily formed by taking Cartesian products of the one-dimensional domains. For example, if the one-dimensional domains in \(x\)- and \(y\)-directions are \([-1, 1]\) and \([0, 2\pi]\), then the two-dimensional domain formed from these two are \([-1, 1] \times [0, 2\pi]\), where \(\times\) represents a Cartesian product.
The one-dimensional domains are discretized using the quadrature points of the chosen basis functions. If the meshes in \(x\)- and \(y\)-directions are \(x = \{x_i\}_{i\in \mathcal{I}^N}\) and \(y = \{y_j\}_{j\in \mathcal{I}^M}\), then a Cartesian product mesh is \(x \times y\). With index and set builder notation it is given as
With shenfun a user chooses the appropriate bases for each dimension of the problem, and may then combine these bases into tensor product spaces and Cartesian product domains. For example, to create the required spaces for the aforementioned domain, with Dirichlet in \(x\)- and periodic in \(y\)-direction, we need the following:
where \(\otimes\) represents a tensor product.
This can be implemented in shenfun as follows:
from shenfun import Basis, TensorProductSpace
from mpi4py import MPI
comm = MPI.COMM_WORLD
N, M = (16, 16)
BN = Basis(N, 'Chebyshev', bc=(0, 0))
BM = Basis(M, 'Fourier', dtype='d')
V = TensorProductSpace(comm, (BN, BM))
Note that the Chebyshev basis is created using \(N\) and not \(N-2\). The
chosen boundary condition bc=(0, 0) ensures that only \(N-2\) bases will be used.
The Fourier basis BM has been defined for real inputs to a
forward transform, which is ensured by the dtype keyword being set to d
for double. dtype
specifies the data type that is input to the forward method, or the
data type of the solution in physical space. Setting
dtype='D' indicates that this datatype will be complex. Note that it
will not trigger an error, or even lead to wrong results, if dtype is
by mistake set to D. It is merely less efficient to work with complex data
arrays where double precision is sufficient. See Sec Getting started
for more information on getting started with using bases.
Shenfun is parallelized with MPI through the mpi4py-fft package.
If we store the current example in filename.py, then it can be run
with more than one processor, e.g., like:
mpirun -np 4 python filename.py
In this case the tensor product space V will be distributed
with the slab method (since the problem is 2D) and it
can here use a maximum of 9 CPUs. The maximum is 9 since the last dimension is
transformed from 16 real numbers to 9 complex, using the Hermitian symmetry of
real transforms, i.e., the shape of a transformed array in the V space will be
(14, 9). You can read more about MPI in the later section MPI.
Tribute¶
Shenfun is named as a tribute to Prof. Jie Shen, as it contains many tools for working with his modified Chebyshev and Legendre bases, as described here:
Jie Shen, SIAM Journal on Scientific Computing, 15 (6), 1489-1505 (1994) (JS1)
Jie Shen, SIAM Journal on Scientific Computing, 16 (1), 74-87, (1995) (JS2)
Shenfun has implemented classes for the bases described in these papers, and within each class there are methods for fast transforms, inner products and for computing matrices arising from bilinear forms in the spectral Galerkin method.
Getting started¶
Basic usage¶
Shenfun consists of classes and functions whoose purpose are to make it easier to implement PDE’s with spectral methods in simple tensor product domains. The most important everyday tools are
A good place to get started is by creating a Basis(). There are six families of
bases: Fourier, Chebyshev, Legendre, Laguerre, Hermite and Jacobi. All bases are
defined on a one-dimensional
domain, with their own basis functions and quadrature points. For example, we have
the regular Chebyshev basis \(\{T_k\}_{k=0}^{N-1}\), where \(T_k\) is the
\(k\)’th Chebyshev polynomial of the first kind. To create such a basis with
8 quadrature points (i.e., \(\{T_k\}_{k=0}^{7}\)) do:
from shenfun import Basis
N = 8
T = Basis(N, 'Chebyshev', bc=None)
Here bc=None is used to indicate that there are no boundary conditions associated
with this basis, which is the default, so it could just as well have been left out.
To create
a regular Legendre basis (i.e., \(\{L_k\}_{k=0}^{N-1}\), where \(L_k\) is the
\(k\)’th Legendre polynomial), just replace
Chebyshev with Legendre above. And to create a Fourier basis, just use
Fourier.
The basis \(T = \{T_k\}_{k=0}^{N-1}\) has many useful methods associated
with it, and we may experiment a little. A Function u using basis
\(T\) has expansion
and an instance of this function (initialized with \(\{\hat{u}_k\}_{k=0}^7=0\)) is created in shenfun as:
from shenfun import Function
u = Function(T)
Consider now for exampel the polynomial \(2x^2-1\), which happens to be exactly equal to \(T_2(x)\). We can create this polynomial using sympy
import sympy as sp
x = sp.Symbol('x')
u = 2*x**2 - 1 # or simply u = sp.chebyshevt(2, x)
The Sympy function u can now be evaluated on the quadrature points of basis
\(T\):
from shenfun import Array
xj = T.mesh()
ue = Array(T)
ue[:] = [u.subs(x, xx) for xx in xj]
print(xj)
[ 0.98078528 0.83146961 0.55557023 0.19509032 -0.19509032 -0.55557023
-0.83146961 -0.98078528]
print(ue)
[ 0.92387953 0.38268343 -0.38268343 -0.92387953 -0.92387953 -0.38268343
0.38268343 0.92387953]
We see that ue is an Array on the basis T, and not a
Function. The Array and Function classes
are both subclasses of Numpy’s ndarray, and represent the two arrays associated
with the spectral Galerkin function, like (1).
The Function represent the entire spectral Galerkin function, with
array values corresponding to the expansion coefficients \(\hat{u}\).
The Array represent the spectral Galerkin function evaluated
on the quadrature mesh of the basis T, i.e., here
\(u(x_i), \forall \, i \in 0, 1, \ldots, 7\).
We now want to find the Function uh corresponding to
Array ue. Considering (1), this corresponds to finding
\(\hat{u}_k\) if the left hand side \(u(x_j)\) is known for
all quadrature points \(x_j\).
Since we already know that ue is
equal to the second Chebyshev polynomial, we should get an array of
expansion coefficients equal to \(\hat{u} = (0, 0, 1, 0, 0, 0, 0, 0)\).
We can compute uh either by using project() or a forward transform:
from shenfun import project
uh = Function(T)
uh = T.forward(ue, uh)
# or
# uh = ue.forward(uh)
# or
# uh = project(ue, T)
print(uh)
[-1.38777878e-17 6.72002101e-17 1.00000000e+00 -1.95146303e-16
1.96261557e-17 1.15426347e-16 -1.11022302e-16 1.65163507e-16]
So we see that the projection works to machine precision.
The projection is mathematically: find \(u_h \in T\), such that
where \(v\) is a test function, \(u_h\) is a trial function and the notation \((\cdot, \cdot)_w\) was introduced in (4). Using now \(v=T_k\) and \(u_h=\sum_{j=0}^7 \hat{u}_j T_j\), we get
for all \(k \in 0, 1, \ldots, 7\). This can be rewritten on matrix form as
where \(B_{kj} = (T_j, T_k)_w\), \(\tilde{u}_k = (u, T_k)_w\) and
summation is implied by the repeating \(j\) indices. Since the
Chebyshev polynomials are orthogonal the mass matrix \(B_{kj}\) is
diagonal. We can assemble both \(B_{kj}\) and \(\tilde{u}_j\)
with shenfun, and at the same time introduce the TestFunction,
TrialFunction classes and the inner() function:
from shenfun import TestFunction, TrialFunction, inner
u = TrialFunction(T)
v = TestFunction(T)
B = inner(u, v)
u_tilde = inner(ue, v)
print(B)
{0: array([3.14159265, 1.57079633, 1.57079633, 1.57079633, 1.57079633,
1.57079633, 1.57079633, 1.57079633])}
print(u_tilde)
[-4.35983562e-17 1.05557843e-16 1.57079633e+00 -3.06535096e-16
3.08286933e-17 1.81311282e-16 -1.74393425e-16 2.59438230e-16]
The inner() function represents the (weighted) inner product and it expects
one test function, and possibly one trial function. If, as here, it also
contains a trial function, then a matrix is returned. If inner()
contains one test, but no trial function, then an array is returned.
Finally, if inner() contains no test nor trial function, but instead
a number and an Array, like:
a = Array(T, val=1)
print(inner(1, a))
2.0
then inner() represents a non-weighted integral over the domain.
Here it returns the length of the domain (2.0) since a is initialized
to unity.
Note that the matrix \(B\) assembled above is stored using shenfun’s
SpectralMatrix class, which is a subclass of Python’s dictionary,
where the keys are the diagonals and the values are the diagonal entries.
The matrix \(B\) is seen to have only one diagonal (the principal)
\(\{B_{ii}\}_{i=0}^{7}\).
With the matrix comes a solve method and we can solve for \(\hat{u}\) through:
u_hat = Function(T)
u_hat = B.solve(u_tilde, u=u_hat)
print(u_hat)
[-1.38777878e-17 6.72002101e-17 1.00000000e+00 -1.95146303e-16
1.96261557e-17 1.15426347e-16 -1.11022302e-16 1.65163507e-16]
which obviously is exactly the same as we found using project()
or the T.forward function.
Note that Array merely is a subclass of Numpy’s ndarray,
whereas Function is a subclass
of both Numpy’s ndarray and the BasisFunction class. The
latter is used as a base class for arguments to bilinear and linear forms,
and is as such a base class also for TrialFunction and
TestFunction. An instance of the Array class cannot
be used in forms, except from regular inner products of numbers or
test function vs an Array. To illustrate, lets create some forms,
where all except the last one is ok:
from shenfun import Dx
T = Basis(12, 'Legendre')
u = TrialFunction(T)
v = TestFunction(T)
uf = Function(T)
ua = Array(T)
A = inner(v, u) # Mass matrix
c = inner(v, ua) # ok, a scalar product
d = inner(v, uf) # ok, a scalar product (slower than above)
e = inner(1, ua) # ok, non-weighted integral of ua over domain
df = Dx(uf, 0, 1) # ok
da = Dx(ua, 0, 1) # Not ok
AssertionError Traceback (most recent call last)
<ipython-input-14-3b957937279f> in <module>
----> 1 da = inner(v, Dx(ua, 0, 1))
~/MySoftware/shenfun/shenfun/forms/operators.py in Dx(test, x, k)
82 Number of derivatives
83 """
---> 84 assert isinstance(test, (Expr, BasisFunction))
85
86 if isinstance(test, BasisFunction):
AssertionError:
So it is not possible to perform operations that involve differentiation
(Dx represents a partial derivative) on an
Array instance. This is because the ua does not contain more
information than its values and its TensorProductSpace. A BasisFunction
instance, on the other hand, can be manipulated with operators like div()
grad() in creating instances of the Expr class, see
Operators.
Note that any rules for efficient use of Numpy ndarrays, like vectorization,
also applies to Function and Array instances.
Operators¶
Operators act on any single instance of a BasisFunction, which can
be Function, TrialFunction or TestFunction. The
implemented operators are:
Operators are used in variational forms assembled using inner()
or project(), like:
A = inner(grad(u), grad(v))
which assembles a stiffness matrix A. Note that the two expressions fed to
inner must have consistent rank. Here, for example, both grad(u) and
grad(v) have rank 1 of a vector.
Multidimensional problems¶
As described in the introduction, a multidimensional problem is handled using
tensor product spaces, that have basis functions generated from taking the
outer products of one-dimensional basis functions. We
create tensor product spaces using the class TensorProductSpace:
N, M = (12, 16)
C0 = Basis(N, 'L', bc=(0, 0), scaled=True)
K0 = Basis(M, 'F', dtype='d')
T = TensorProductSpace(comm, (C0, K0))
Associated with this is a Cartesian mesh \([-1, 1] \times [0, 2\pi]\). We use
classes Function, TrialFunction and TestFunction
exactly as before:
u = TrialFunction(T)
v = TestFunction(T)
A = inner(grad(u), grad(v))
However, now A will be a tensor product matrix, or more correctly,
the sum of two tensor product matrices. This can be seen if we look at
the equations beyond the code. In this case we are using a composite
Legendre basis for the first direction and Fourier exponentials for
the second, and the tensor product basis function is
where \(L_k\) is the \(k\)’th Legendre polynomial, \(\psi_k = (L_k-L_{k+2})/\sqrt{4k+6}\) and \(\phi_l = \exp(\imath l y)\) are used for simplicity in later derivations. The trial function becomes
and the inner product is
showing that it is the sum of two tensor product matrices. However, each one of these two terms contains the outer product of smaller matrices. To see this we need to insert for the trial and test functions (using \(v_{mn}\) for test):
where \(A \in \mathbb{R}^{N-2 \times N-2}\) and \(B \in \mathbb{R}^{M \times M}\).
The tensor product matrix \(A_{mk} B_{nl}\) (or in matrix notation \(A \otimes B\))
is the first item of the two
items in the list that is returned by inner(grad(u), grad(v)). The other
item is of course the second term in the last line of (2):
The tensor product matrices \(A_{mk} B_{nl}\) and \(C_{mk}D_{nl}\) are both instances
of the TPMatrix class. Together they lead to linear algebra systems
like:
where
for some right hand side \(f\), see, e.g., (10). Note that an alternative formulation here is
where \(\hat{u}\) and \(\tilde{f}\) are treated as regular matrices (\(\hat{u} \in \mathbb{R}^{N-2 \times M}\) and \(\tilde{f} \in \mathbb{R}^{N-2 \times M}\)). This formulation is utilized to derive efficient solvers for tensor product bases in multiple dimensions using the matrix decomposition method in [She94] and [She95].
Note that in our case the equation system (3) can be greatly simplified since three of the submatrices (\(A_{mk}, B_{nl}\) and \(D_{nl}\)) are diagonal. Even more, two of them equal the identity matrix
whereas the last one can be written in terms of the identity (no summation on repeating indices)
Inserting for this in (3) and simplifying by requiring that \(l=n\) in the second step, we get
Now if we keep \(l\) fixed this latter equation is simply a regular linear algebra problem to solve for \(\hat{u}_{kl}\), for all \(k\). Of course, this solve needs to be carried out for all \(l\).
Note that there is a generic solver available for the system
(3) in SolverGeneric2NP that makes no
assumptions on diagonality. However, this solver will, naturally, be
quite a bit slower than a tailored solver that takes advantage of
diagonality. For the Poisson equation such solvers are available for
both Legendre and Chebyshev bases, see the extended demo Demo - 3D Poisson’s equation
or the demo programs dirichlet_poisson2D.py
and dirichlet_poisson3D.py.
Curvilinear coordinates¶
Shenfun can be used to solve equations using curvilinear coordinates, like polar, cylindrical and spherical coordinates. The feature was added April 2020, and is still rather experimental. The curvilinear coordinates are defined by the user, who needs to provide a map, i.e., the position vector, between new coordinates and the Cartesian coordinates. The basis functions of the new coordinates need not be orthogonal, but non-orthogonal is not widely tested so use with care. In shenfun we use non-normalized natural (covariant) basis vectors. For this reason the equations may look a little bit different than usual. For example, in cylindrical coordinates we have the position vector
where \(\mathbf{i, j, k}\) are the Cartesian unit vectors and \(r, \theta, z\) are the new coordinates. The covariant basis vectors are then
leading to
We see that \(|\mathbf{b}_{\theta}| = r\) and not unity.
A vector \(\mathbf{u}\) in this basis is given as
and the vector Laplacian \(\nabla^2 \mathbf{u}\) is
which is slightly different from what you see in most textbooks, which are using normalized basis vectors.
Note that once the curvilinear map has been created, shenfun’s operators
div(), grad() and curl() work out of the box with
no additional effort. So you do not have to implement messy equations
that look like (9) directly. Take the example with
cylindrical coordinates. The vector Laplacian can be implemented
as:
from shenfun import *
import sympy as sp
r, theta, z = psi = sp.symbols('x,y,z', real=True, positive=True)
rv = (r*sp.cos(theta), r*sp.sin(theta), z)
N = 10
F0 = Basis(N, 'F', dtype='d')
F1 = Basis(N, 'F', dtype='D')
L = Basis(N, 'L', domain=(0, 1))
T = TensorProductSpace(comm, (L, F1, F0), coordinates=(psi, rv))
V = VectorTensorProductSpace(T)
u = TrialFunction(V)
du = div(grad(u))

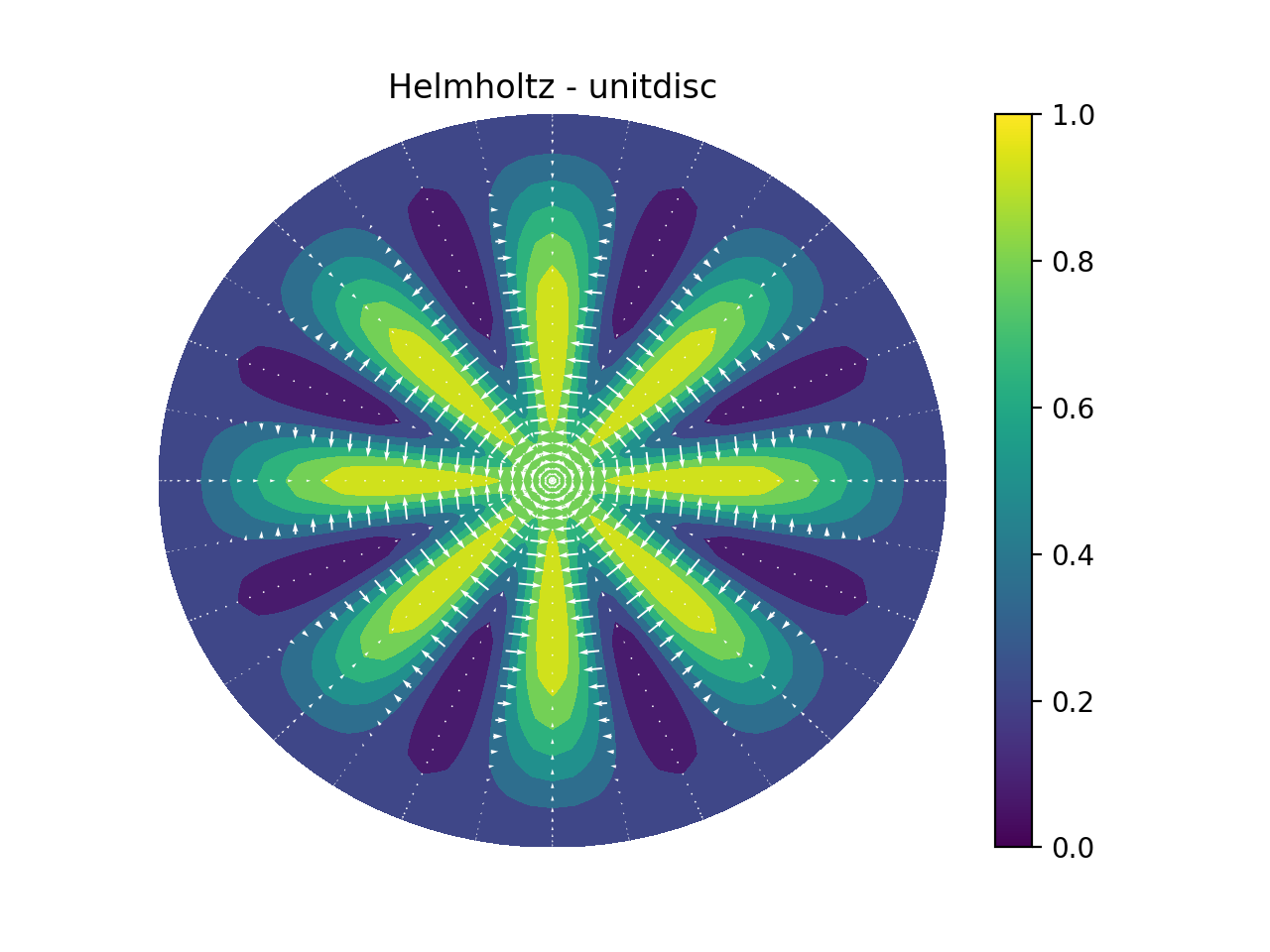

There are currently curvilinear demos for solving both Helmholtz’s equation and the biharmonic equation on a circular disc, a solver for 3D Poisson equation in a pipe, and a solver for the biharmonic equation on a part of the disc. Also, the Helmholtz equation solved on the unit sphere using spherical coordinates is shown here, and on the torus here. A solution from solving the biharmonic equation with homogeneous Dirichlet boundary conditions on \((\theta, r) \in [0, \pi/2] \times [0.5, 1]\) is shown below.
Coupled problems¶
With Shenfun it is possible to solve equations coupled and implicit using the
MixedTensorProductSpace class for multidimensional problems and
MixedBasis for one-dimensional problems. As an example, lets consider
a mixed formulation of the Poisson equation. The Poisson equation is given as
always as
but now we recast the problem into a mixed formulation
where we solve for the vector \(\sigma\) and scalar \(u\) simultaneously. The domain \(\Omega\) is taken as a multidimensional Cartesian product \(\Omega=[-1, 1] \times [0, 2\pi]\), but the code is more or less identical for a 3D problem. For boundary conditions we use Dirichlet in the \(x\)-direction and periodicity in the \(y\)-direction:
Note that there is no boundary condition on \(\sigma\), only on \(u\).
For this reason we choose a Dirichlet basis \(SD\) for \(u\) and a regular
Legendre or Chebyshev \(ST\) basis for \(\sigma\). With \(K0\) representing
the function space in the periodic direction, we get the relevant 2D tensor product
spaces as \(TD = SD \otimes K0\) and \(TT = ST \otimes K0\).
Since \(\sigma\) is
a vector we use a VectorTensorProductSpace \(VT = TT \times TT\) and
finally a MixedTensorProductSpace \(Q = VT \times TD\) for the coupled and
implicit treatment of \((\sigma, u)\):
from shenfun import VectorTensorProductSpace, MixedTensorProductSpace
N, M = (16, 24)
family = 'Legendre'
SD = Basis(N[0], family, bc=(0, 0))
ST = Basis(N[0], family)
K0 = Basis(N[1], 'Fourier', dtype='d')
TD = TensorProductSpace(comm, (SD, K0), axes=(0, 1))
TT = TensorProductSpace(comm, (ST, K0), axes=(0, 1))
VT = VectorTensorProductSpace(TT)
Q = MixedTensorProductSpace([VT, TD])
In variational form the problem reads: find \((\sigma, u) \in Q\) such that
To implement this we use code that is very similar to regular, uncoupled problems. We create test and trialfunction:
gu = TrialFunction(Q)
tv = TestFunction(Q)
sigma, u = gu
tau, v = tv
and use these to assemble all blocks of the variational form (11):
# Assemble equations
A00 = inner(sigma, tau)
if family.lower() == 'legendre':
A01 = inner(u, div(tau))
else:
A01 = inner(-grad(u), tau)
A10 = inner(div(sigma), v)
Note that we here can use integration by parts for Legendre, since the weight function is a constant, and as such get the term \((-\nabla u, \tau)_w = (u, \nabla \cdot \tau)_w\) (boundary term is zero due to homogeneous Dirichlet boundary conditions).
We collect all assembled terms in a BlockMatrix:
from shenfun import BlockMatrix
H = BlockMatrix(A00+A01+A10)
This block matrix H is then simply (for Legendre)
Note that each item in (12) is a collection of instances of the
TPMatrix class, and for similar reasons as given around (4),
we get also here one regular block matrix for each Fourier wavenumber.
The sparsity pattern is the same for all matrices except for wavenumber 0.
The (highly sparse) sparsity pattern for block matrix \(H\) with
wavenumber \(\ne 0\) is shown in the image below
A complete demo for the coupled problem discussed here can be found in MixedPoisson.py and a 3D version is in MixedPoisson3D.py.
Integrators¶
The integrators module contains some interator classes that can be
used to integrate a solution forward in time. However, for now these integrators
are only implemented for purely Fourier tensor product spaces.
There are currently 3 different integrator classes
See, e.g., H. Montanelli and N. Bootland “Solving periodic semilinear PDEs in 1D, 2D and 3D with exponential integrators”, https://arxiv.org/pdf/1604.08900.pdf
Integrators are set up to solve equations like
where \(u\) is the solution, \(L\) is a linear operator and \(N(u)\) is the nonlinear part of the right hand side.
To illustrate, we consider the time-dependent 1-dimensional Kortveeg-de Vries equation
which can also be written as
We neglect boundary issues and choose a periodic domain \([0, 2\pi]\) with Fourier exponentials as test functions. The initial condition is chosen as
where \(A\) and \(B\) are constants. For discretization in space we use the basis \(V_N = span\{exp(\imath k x)\}_{k=0}^N\) and formulate the variational problem: find \(u \in V_N\) such that
We see that the first term on the right hand side is linear in \(u\), whereas the second term is nonlinear. To implement this problem in shenfun we start by creating the necessary basis and test and trial functions
import numpy as np
from shenfun import *
N = 256
T = Basis(N, 'F', dtype='d')
u = TrialFunction(T)
v = TestFunction(T)
u_ = Array(T)
u_hat = Function(T)
We then create two functions representing the linear and nonlinear part of (13):
def LinearRHS(**params):
return -inner(Dx(u, 0, 3), v)
k = T.wavenumbers(scaled=True, eliminate_highest_freq=True)
def NonlinearRHS(u, u_hat, rhs, **params):
rhs.fill(0)
u_[:] = T.backward(u_hat, u_)
rhs = T.forward(-0.5*u_**2, rhs)
return rhs*1j*k # return inner(grad(-0.5*Up**2), v)
Note that we differentiate in NonlinearRHS by using the wavenumbers k
directly. Alternative notation, that is given in commented out text, is slightly
slower, but the results are the same.
The solution vector u_ needs also to be initialized according to (14)
A = 25.
B = 16.
x = T.points_and_weights()[0]
u_[:] = 3*A**2/np.cosh(0.5*A*(x-np.pi+2))**2 + 3*B**2/np.cosh(0.5*B*(x-np.pi+1))**2
u_hat = T.forward(u_, u_hat)
Finally we create an instance of the ETDRK4 solver, and integrate
forward with a given timestep
dt = 0.01/N**2
end_time = 0.006
integrator = ETDRK4(T, L=LinearRHS, N=NonlinearRHS)
integrator.setup(dt)
u_hat = integrator.solve(u_, u_hat, dt, (0, end_time))
The solution is two waves travelling through eachother, seemingly undisturbed.
MPI¶
Shenfun makes use of the Message Passing Interface (MPI) to solve problems on distributed memory architectures. OpenMP is also possible to enable for FFTs.
Dataarrays in Shenfun are distributed using a new and completely generic method, that allows for any index of a multidimensional array to be
distributed. To illustrate, lets consider a TensorProductSpace
of three dimensions, such that the arrays living in this space will be
3-dimensional. We create two spaces that are identical, except from the MPI
decomposition, and we use 4 CPUs (mpirun -np 4 python mpitest.py, if we
store the code in this section as mpitest.py):
from shenfun import *
from mpi4py import MPI
from mpi4py_fft import generate_xdmf
comm = MPI.COMM_WORLD
N = (20, 40, 60)
K0 = Basis(N[0], 'F', dtype='D', domain=(0, 1))
K1 = Basis(N[1], 'F', dtype='D', domain=(0, 2))
K2 = Basis(N[2], 'F', dtype='d', domain=(0, 3))
T0 = TensorProductSpace(comm, (K0, K1, K2), axes=(0, 1, 2), slab=True)
T1 = TensorProductSpace(comm, (K0, K1, K2), axes=(1, 0, 2), slab=True)
Here the keyword slab determines that only one index set of the 3-dimensional
arrays living in T0 or T1 should be distributed. The defaul is to use
two, which corresponds to a so-called pencil decomposition. The axes-keyword
determines the order of which transforms are conducted, starting from last to
first in the given tuple. Note that T0 now will give arrays in real physical
space that are distributed in the first index, whereas T1 will give arrays
that are distributed in the second. This is because 0 and
1 are the first items in the tuples given to axes.
We can now create some Arrays on these spaces:
u0 = Array(T0, val=comm.Get_rank())
u1 = Array(T1, val=comm.Get_rank())
such that u0 and u1 have values corresponding to their communicating
processors rank in the COMM_WORLD group (the group of all CPUs).
Note that both the TensorProductSpaces have functions with expansion
where \(u(x, y, z)\) is the continuous solution in real physical space, and \(\hat{u}\) are the spectral expansion coefficients. If we evaluate expansion (15) on the real physical mesh, then we get
The function \(u(x_i, y_j, z_k)\) corresponds to the arrays u0, u1, whereas
we have not yet computed the array \(\hat{u}\). We could get \(\hat{u}\) as:
u0_hat = Function(T0)
u0_hat = T0.forward(u0, u0_hat)
Now, u0 and u1 have been created on the same mesh, which is a structured
mesh of shape \((20, 40, 60)\). However, since they have different MPI
decomposition, the values used to fill them on creation will differ. We can
visualize the arrays in Paraview using some postprocessing tools, to be further
described in Sec Postprocessing:
u0.write('myfile.h5', 'u0', 0, domain=T0.mesh())
u1.write('myfile.h5', 'u1', 0, domain=T1.mesh())
if comm.Get_rank() == 0:
generate_xdmf('myfile.h5')
And when the generated myfile.xdmf is opened in Paraview, we
can see the different distributions. The function u0 is shown first, and
we see that it has different values along the short first dimension. The
second figure is evidently distributed along the second dimension. Both
arrays are non-distributed in the third and final dimension, which is
fortunate, because this axis will be the first to be transformed in, e.g.,
u0_hat = T0.forward(u0, u0_hat).
We can now decide to distribute not just one, but the first two axes using a pencil decomposition instead. This is achieved simply by dropping the slab keyword:
T2 = TensorProductSpace(comm, (K0, K1, K2), axes=(0, 1, 2))
u2 = Array(T2, val=comm.Get_rank())
u2.write('pencilfile.h5', 'u2', 0)
if comm.Get_rank() == 0:
generate_xdmf('pencilfile.h5')
Running again with 4 CPUs the array u2 will look like:
The local slices into the global array may be obtained through:
>>> print(comm.Get_rank(), T2.local_slice(False))
0 [slice(0, 10, None), slice(0, 20, None), slice(0, 60, None)]
1 [slice(0, 10, None), slice(20, 40, None), slice(0, 60, None)]
2 [slice(10, 20, None), slice(0, 20, None), slice(0, 60, None)]
3 [slice(10, 20, None), slice(20, 40, None), slice(0, 60, None)]
In spectral space the distribution will be different. This is because the
discrete Fourier transforms are performed one axis at the time, and for
this to happen the dataarrays need to be realigned to get entire axis available
for each processor. Naturally, for the array in the pencil example
(see image), we can only perform an
FFT over the third and longest axis, because only this axis is locally available to all
processors. To do the other directions, the dataarray must be realigned and this
is done internally by the TensorProductSpace class.
The shape of the datastructure in spectral space, that is
the shape of \(\hat{u}\), can be obtained as:
>>> print(comm.Get_rank(), T2.local_slice(True))
0 [slice(0, 20, None), slice(0, 20, None), slice(0, 16, None)]
1 [slice(0, 20, None), slice(0, 20, None), slice(16, 31, None)]
2 [slice(0, 20, None), slice(20, 40, None), slice(0, 16, None)]
3 [slice(0, 20, None), slice(20, 40, None), slice(16, 31, None)]
Evidently, the spectral space is distributed in the last two axes, whereas the first axis is locally avalable to all processors. Tha dataarray is said to be aligned in the first dimension.
Post processing¶
MPI is great because it means that you can run Shenfun on pretty much
as many CPUs as you can get your hands on. However, MPI makes it more
challenging to do visualization, in particular with Python and Matplotlib.
For this reason there is a utilities module with helper classes
for dumping dataarrays to HDF5 or
NetCDF
Most of the IO has already been implemented in
mpi4py-fft.
The classes HDF5File and NCFile are used exactly as
they are implemented in mpi4py-fft. As a common interface we provide
where ShenfunFile() returns an instance of
either HDF5File or NCFile, depending on choice
of backend.
For example, to create an HDF5 writer for a 3D TensorProductSpace with Fourier bases in all directions:
from shenfun import *
from mpi4py import MPI
N = (24, 25, 26)
K0 = Basis(N[0], 'F', dtype='D')
K1 = Basis(N[1], 'F', dtype='D')
K2 = Basis(N[2], 'F', dtype='d')
T = TensorProductSpace(MPI.COMM_WORLD, (K0, K1, K2))
fl = ShenfunFile('myh5file', T, backend='hdf5', mode='w')
The file instance fl will now have two method that can be used to either write
dataarrays to file, or read them back again.
fl.write
fl.read
With the HDF5 backend we can write
both arrays from physical space (Array), as well as spectral space
(Function). However, the NetCDF4 backend cannot handle complex
dataarrays, and as such it can only be used for real physical dataarrays.
In addition to storing complete dataarrays, we can also store any slices of
the arrays. To illustrate, this is how to store three snapshots of the
u array, along with some global 2D and 1D slices:
u = Array(T)
u[:] = np.random.random(u.shape)
d = {'u': [u, (u, np.s_[4, :, :]), (u, np.s_[4, 4, :])]}
fl.write(0, d)
u[:] = 2
fl.write(1, d)
The ShenfunFile may also be used for the MixedTensorProductSpace,
or VectorTensorProductSpace, that are collections of the scalar
TensorProductSpace. We can create a MixedTensorProductSpace
consisting of two TensorProductSpaces, and an accompanying writer class as:
TT = MixedTensorProductSpace([T, T])
fl_m = ShenfunFile('mixed', TT, backend='hdf5', mode='w')
Let’s now consider a transient problem where we step a solution forward in time.
We create a solution array from the Array class, and update the array
inside a while loop:
TT = VectorTensorProductSpace(T)
fl_m = ShenfunFile('mixed', TT, backend='hdf5', mode='w')
u = Array(TT)
tstep = 0
du = {'uv': (u,
(u, [4, slice(None), slice(None)]),
(u, [slice(None), 10, 10]))}
while tstep < 3:
fl_m.write(tstep, du, forward_output=False)
tstep += 1
Note that on each time step the arrays
u, (u, [4, slice(None), slice(None)]) and (u, [slice(None), 10, 10])
are vectors, and as such of global shape (3, 24, 25, 26), (3, 25, 26) and
(3, 25), respectively. However, they are stored in the hdf5 file under their
spatial dimensions 1D, 2D and 3D, respectively.
Note that the slices in the above dictionaries are global views of the global arrays, that may or may not be distributed over any number of processors. Also note that these routines work with any number of CPUs, and the number of CPUs does not need to be the same when storing or retrieving the data.
After running the above, the different arrays will be found in groups stored in myyfile.h5 with directory tree structure as:
myh5file.h5/
└─ u/
├─ 1D/
| └─ 4_4_slice/
| ├─ 0
| └─ 1
├─ 2D/
| └─ 4_slice_slice/
| ├─ 0
| └─ 1
├─ 3D/
| ├─ 0
| └─ 1
└─ mesh/
├─ x0
├─ x1
└─ x2
Likewise, the mixed.h5 file will at the end of the loop look like:
mixed.h5/
└─ uv/
├─ 1D/
| └─ slice_10_10/
| ├─ 0
| ├─ 1
| └─ 3
├─ 2D/
| └─ 4_slice_slice/
| ├─ 0
| ├─ 1
| └─ 3
├─ 3D/
| ├─ 0
| ├─ 1
| └─ 3
└─ mesh/
├─ x0
├─ x1
└─ x2
Note that the mesh is stored as well as the results. The three mesh arrays are all 1D arrays, representing the domain for each basis in the TensorProductSpace.
With NetCDF4 the layout is somewhat different. For mixed above,
if we were using backend netcdf instead of hdf5,
we would get a datafile where ncdump -h mixed.nc would result in:
netcdf mixed {
dimensions:
time = UNLIMITED ; // (3 currently)
i = 3 ;
x = 24 ;
y = 25 ;
z = 26 ;
variables:
double time(time) ;
double i(i) ;
double x(x) ;
double y(y) ;
double z(z) ;
double uv(time, i, x, y, z) ;
double uv_4_slice_slice(time, i, y, z) ;
double uv_slice_10_10(time, i, x) ;
}
Note that it is also possible to store vector arrays as scalars. For NetCDF4 this is necessary for direct visualization using Visit. To store vectors as scalars, simply use:
fl_m.write(tstep, du, forward_output=False, as_scalar=True)
ParaView¶
The stored datafiles can be visualized in ParaView.
However, ParaView cannot understand the content of these HDF5-files without
a little bit of help. We have to explain that these data-files contain
structured arrays of such and such shape. The way to do this is through
the simple XML descriptor XDMF. To this end there is a
function imported from mpi4py-fft
called generate_xdmf that can be called with any one of the
generated hdf5-files:
generate_xdmf('myh5file.h5')
generate_xdmf('mixed.h5')
This results in some light xdmf-files being generated for the 2D and 3D arrays in the hdf5-file:
myh5file.xdmf
myh5file_4_slice_slice.xdmf
mixed.xdmf
mixed_4_slice_slice.xdmf
These xdmf-files can be opened and inspected by ParaView. Note that 1D arrays are not wrapped, and neither are 4D.
An annoying feature of Paraview is that it views a three-dimensional array of
shape \((N_0, N_1, N_2)\) as transposed compared to shenfun. That is,
for Paraview the last axis represents the \(x\)-axis, whereas
shenfun (like most others) considers the first axis to be the \(x\)-axis.
So when opening a
three-dimensional array in Paraview one needs to be aware. Especially when
plotting vectors. Assume that we are working with a Navier-Stokes solver
and have a three-dimensional VectorTensorProductSpace to represent
the fluid velocity:
from mpi4py import MPI
from shenfun import *
comm = MPI.COMM_WORLD
N = (32, 64, 128)
V0 = Basis(N[0], 'F', dtype='D')
V1 = Basis(N[1], 'F', dtype='D')
V2 = Basis(N[2], 'F', dtype='d')
T = TensorProductSpace(comm, (V0, V1, V2))
TV = VectorTensorProductSpace(T)
U = Array(TV)
U[0] = 0
U[1] = 1
U[2] = 2
To store the resulting Array U we can create an instance of the
HDF5File class, and store using keyword as_scalar=True:
hdf5file = ShenfunFile("NS", TV, backend='hdf5', mode='w')
...
file.write(0, {'u': [U]}, as_scalar=True)
file.write(1, {'u': [U]}, as_scalar=True)
Alternatively, one may store the arrays directly as:
U.write('U.h5', 'u', 0, domain=T.mesh(), as_scalar=True)
U.write('U.h5', 'u', 1, domain=T.mesh(), as_scalar=True)
Generate an xdmf file through:
generate_xdmf('NS.h5')
and open the generated NS.xdmf file in Paraview. You will then see three scalar
arrays u0, u1, u2, each one of shape (32, 64, 128), for the vector
component in what Paraview considers the \(z\), \(y\) and \(x\) directions,
respectively. Other than the swapped coordinate axes there is no difference.
But be careful if creating vectors in Paraview with the Calculator. The vector
should be created as:
u0*kHat+u1*jHat+u2*iHat
Installation¶
Shenfun has a few dependencies
that are mostly straight-forward to install, or already installed in most Python environments. The first two are usually most troublesome. Basically, for mpi4py you need to have a working MPI installation, whereas FFTW is available on most high performance computer systems. If you are using conda, then all you need to install a fully functional shenfun, with all the above dependencies, is
conda install -c conda-forge shenfun
You probably want to install into a fresh environment, though, which can be achieved with
conda create --name shenfun -c conda-forge shenfun
conda activate shenfun
Note that this gives you shenfun with default settings. This means that you will probably get the openmpi backend. To make sure that shenfun is is installed with mpich instead do
conda create --name shenfun -c conda-forge shenfun mpich
If you do not use conda, then you need to make sure that MPI and FFTW are installed by some other means. You can then install any version of shenfun hosted on pypi using pip
pip install shenfun
whereas the following will install the latest version from github
pip install git+https://github.com/spectralDNS/shenfun.git@master
Note that a common approach is to install shenfun from conda-forge to
get all the dependencies, and then build a local version by (after cloning or
forking to a local folder) running from the top directory
pip install .
or
python setup.py build_ext -i
This is required to build all the Cython dependencies locally.
Optimization¶
Shenfun contains a few routines (essentially linear algebra solvers
and matrix vector products) that are difficult to vectorize with numpy,
and for this reason they have been implemented in either (or both of)
Numba or Cython. The user may choose which implementation
to use through the environment variable SHENFUN_OPTIMIZATION. The default
is to use cython, but it is possible to enable either one by making
the appropriate choice in the active terminal
export SHENFUN_OPTIMIZATION={CYTHON,NUMBA}
Additional dependencies¶
For storing and retrieving data you need either HDF5 or netCDF4, compiled with support for MPI (see Postprocessing). Both HDF5 and netCDF4 are already available with parallel support on conda-forge, and, if they were not installed at the same time as shenfun, they can be installed as
conda install -c conda-forge h5py=*=mpi* netcdf4=*=mpi*
Note that parallel HDF5 and NetCDF4 often are available as modules on supercomputers. Otherwise, see the respective packages for how to install with support for MPI.
Some of the plots in the Demos are created using the matplotlib library. Matplotlib is not a required dependency, but it may be easily installed from conda using
conda install matplotlib
Test installation¶
After installing (from source) it may be a good idea to run all the tests located in the tests folder. The tests are run with pytest from the main directory of the source code
python -m pytest tests/
However, note that for conda you need to install pytest into the correct environment as well. A common mistake is to run a version of pytest that has already been installed in a different conda environment, perhaps using a different Python version.
The tests are run automatically on every commit to github, see
How to cite?¶
Please cite shenfun using
@inproceedings{shenfun,
author = {Mortensen, Mikael},
booktitle = {MekIT'17 - Ninth national conference on Computational Mechanics},
isbn = {978-84-947311-1-2},
pages = {273--298},
archivePrefix = "arXiv",
eprint = {1708.03188},
publisher = {International Center for Numerical Methods in Engineering (CIMNE)},
title = {Shenfun - automating the spectral Galerkin method},
editor = {Skallerud, Bjorn Helge and Andersson, Helge Ingolf},
year = {2017}
}
@article{mortensen_joss,
author = {Mortensen, Mikael},
year = 2018,
title = {Shenfun: High performance spectral Galerkin computing platform},
journal = {Journal of Open Source Software},
volume = 3,
number = 31,
pages = 1071,
doi = https://doi.org/10.21105/joss.01071
}
How to contribute?¶
Shenfun is an open source project and anyone is welcome to contribute. An easy way to get started is by suggesting a new enhancement on the issue tracker. If you have found a bug, then either report this on the issue tracker, er even better, make a fork of the repository, fix the bug and then create a pull request to get the fix into the master branch.
If you have a particularily interesting application, then we are very interested in pull requests that are adding new demo programs. If you feel like adding an extended demo, then have a look at the examples in the docs/demos folder. Note that extended demos are written using doconce.
Demo - 1D Poisson’s equation¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. This is a demonstration of how the Python module shenfun can be used to solve Poisson’s equation with Dirichlet boundary conditions in one dimension. Spectral convergence, as shown in Figure Convergence of 1D Poisson solvers for both Legendre and Chebyshev modified basis function, is demonstrated. The demo is implemented in a single Python file dirichlet_poisson1D.py, and the numerical method is is described in more detail by J. Shen [She94] and [She95].
Convergence of 1D Poisson solvers for both Legendre and Chebyshev modified basis function¶
Model problem¶
Poisson’s equation¶
Poisson’s equation is given as
where \(u(x)\) is the solution, \(f(x)\) is a function and \(a, b\) are two possibly non-zero constants.
To solve Eq. (1) with the Galerkin method we need smooth continuously differentiable basis functions, \(v_k\), that satisfy the given boundary conditions. And then we look for solutions like
where \(N\) is the size of the discretized problem, \(\hat{\mathbf{u}} = \{\hat{u}_k\}_{k=0}^{N-1}\) are the unknown expansion coefficients, and the basis is \(\text{span}\{v_k\}_{k=0}^{N-1}\).
The basis functions can, for example, be constructed from Chebyshev, \(T_k(x)\), or Legendre, \(L_k(x)\), polynomials and we use the common notation \(\phi_k(x)\) to represent either one of them. It turns out that it is easiest to use basis functions with homogeneous Dirichlet boundary conditions
for \(k=0, 1, \ldots N-3\). This gives the basis \(V^N_0 = \text{span}\{v_k(x)\}_{k=0}^{N-3}\). We can then add two more linear basis functions (that belong to the kernel of Poisson’s equation)
which gives the inhomogeneous basis \(V^N = \text{span}\{v_k\}_{k=0}^{N-1}\). With the two linear basis functions it is easy to see that the last two degrees of freedom, \(\hat{u}_{N-2}\) and \(\hat{u}_{N-1}\), now are given as
and, as such, we only have to solve for \(\{\hat{u}_k\}_{k=0}^{N-3}\), just like for a problem with homogeneous boundary conditions (for homogeneous boundary condition we simply have \(\hat{u}_{N-2} = \hat{u}_{N-1} = 0\)). We now formulate a variational problem using the Galerkin method: Find \(u \in V^N\) such that
Note that since we only have \(N-3\) unknowns we are only using the homogeneous test functions from \(V^N_0\).
The weighted integrals, weighted by \(w(x)\), are called inner products, and a common notation is
The integral can either be computed exactly, or with quadrature. The advantage of the latter is that it is generally faster, and that non-linear terms may be computed just as quickly as linear. For a linear problem, it does not make much of a difference, if any at all. Approximating the integral with quadrature, we obtain
where \(\{w(x_j)\}_{j=0}^{N-1}\) are quadrature weights. The quadrature points \(\{x_j\}_{j=0}^{N-1}\) are specific to the chosen basis, and even within basis there are two different choices based on which quadrature rule is selected, either Gauss or Gauss-Lobatto.
Inserting for test and trialfunctions, we get the following bilinear form and matrix \(A\in\mathbb{R}^{N-3\times N-3}\) for the Laplacian (using the summation convention in step 2)
Note that the sum in \(a_{jk} \hat{u}_{k}\) runs over \(k=0, 1, \ldots, N-3\) since the second derivatives of \(v_{N-1}\) and \(v_{N}\) are zero. The right hand side linear form and vector is computed as \(\tilde{f}_j = (f, v_j)_w^N\), for \(j=0,1,\ldots, N-3\), where a tilde is used because this is not a complete transform of the function \(f\), but only an inner product.
The linear system of equations to solve for the expansion coefficients of \(u(x)\) is given as
Now, when the expansion coefficients \(\hat{\mathbf{u}}\) are found by solving this linear system, they may be transformed to real space \(u(x)\) using (4), and here the contributions from \(\hat{u}_{N-2}\) and \(\hat{u}_{N-1}\) must be accounted for. Note that the matrix \(A\) (different for Legendre or Chebyshev) has a very special structure that allows for a solution to be found very efficiently in order of \(\mathcal{O}(N)\) operations, see [She94] and [She95]. These solvers are implemented in shenfun for both bases.
Method of manufactured solutions¶
In this demo we will use the method of manufactured
solutions to demonstrate spectral accuracy of the shenfun Dirichlet bases. To
this end we choose an analytical function that satisfies the given boundary
conditions:
where \(k\) is an integer and \(a\) and \(b\) are constants. Now, feeding \(u_e\) through the Laplace operator, we see that the last two linear terms disappear, whereas the first term results in
Now, setting \(f_e(x) = \nabla^2 u_e(x)\) and solving for \(\nabla^2 u(x) = f_e(x)\), we can compare the numerical solution \(u(x)\) with the analytical solution \(u_e(x)\) and compute error norms.
Implementation¶
Preamble¶
We will solve Poisson’s equation using the shenfun Python module. The first thing needed is then to import some of this module’s functionality plus some other helper modules, like Numpy and Sympy:
from shenfun import inner, div, grad, TestFunction, TrialFunction, Function, \
project, Dx, Array, Basis
import numpy as np
from sympy import symbols, cos, sin, exp, lambdify
We use Sympy for the manufactured solution and Numpy for testing.
Manufactured solution¶
The exact solution \(u_e(x)\) and the right hand side \(f_e(x)\) are created using
Sympy as follows
a = -1
b = 1
k = 4
x = symbols("x")
ue = sin(k*np.pi*x)*(1-x**2) + a*(1 - x)/2. + b*(1 + x)/2.
fe = ue.diff(x, 2)
These solutions are now valid for a continuous domain. The next step is thus to discretize, using a discrete mesh \(\{x_j\}_{j=0}^{N-1}\) and a finite number of basis functions.
Note that it is not mandatory to use Sympy for the manufactured solution. Since the
solution is known (14), we could just as well simply use Numpy
to compute \(f_e\) at \(\{x_j\}_{j=0}^{N-1}\). However, with Sympy it is much
easier to experiment and quickly change the solution.
Discretization¶
We create a basis with a given number of basis functions, and extract the computational mesh from the basis itself
N = 32
SD = Basis(N, 'Chebyshev', bc=(a, b))
#SD = Basis(N, 'Legendre', bc=(a, b))
X = SD.mesh(N)
Note that we can either choose a Legendre or a Chebyshev basis.
Variational formulation¶
The variational problem (12) can be assembled using shenfun’s
TrialFunction, TestFunction and inner() functions.
u = TrialFunction(SD)
v = TestFunction(SD)
# Assemble left hand side matrix
A = inner(v, div(grad(u)))
# Assemble right hand side
fj = Array(SD, buffer=fe)
f_hat = Function(SD)
f_hat = inner(v, fj, output_array=f_hat)
Note that the sympy function fe can be used to initialize the Array
fj. We wrap this Numpy array in an Array class
(fj = Array(SD, buffer=fe)), because an Array
is required as input to the inner() function.
Solve linear equations¶
Finally, solve linear equation system and transform solution from spectral
\(\{\hat{u}_k\}_{k=0}^{N-1}\) vector to the real space \(\{u(x_j)\}_{j=0}^{N-1}\)
and then check how the solution corresponds with the exact solution \(u_e\).
To this end we compute the \(L_2\)-errornorm using the shenfun function
dx()
u_hat = A.solve(f_hat)
uj = SD.backward(u_hat)
ue = Array(SD, buffer=ue)
print("Error=%2.16e" %(np.sqrt(dx((uj-ua)**2))))
assert np.allclose(uj, ue)
Convergence test¶
A complete solver is given in Sec. Complete solver. This solver is created such that it takes in two commandline arguments and prints out the \(L_2\)-errornorm of the solution in the end. We can use this to write a short script that performs a convergence test. The solver is run like
>>> python dirichlet_poisson1D.py 32 legendre
Error=1.8132185245826562e-10
for a discretization of size \(N=32\) and for the Legendre basis. Alternatively,
change legendre to chebyshev for the Chebyshev basis.
We set up the solver to run for a list of \(N=[12, 16, \ldots, 48]\), and collect the errornorms in arrays to be plotted. Such a script can be easily created with the subprocess module
import subprocess
N = range(12, 50, 4)
error = {}
for basis in ('legendre', 'chebyshev'):
error[basis] = []
for i in range(len(N)):
output = subprocess.check_output("python dirichlet_poisson1D.py {} {}".format(N[i], basis), shell=True)
exec(output) # Error is printed as "Error=%2.16e"%(np.linalg.norm(uj-ua))
error[basis].append(Error)
The error can be plotted using matplotlib, and the generated figure is shown in the summary’s Fig. Convergence of 1D Poisson solvers for both Legendre and Chebyshev modified basis function. The spectral convergence is evident and we can see that after \(N=40\) roundoff errors dominate as the errornorm trails off around \(10^{-14}\).
import matplotlib.pyplot as plt
plt.figure(figsize=(6, 4))
for basis, col in zip(('legendre', 'chebyshev'), ('r', 'b')):
plt.semilogy(N, error[basis], col, linewidth=2)
plt.title('Convergence of Poisson solvers 1D')
plt.xlabel('N')
plt.ylabel('Error norm')
plt.savefig('poisson1D_errornorm.png')
plt.legend(('Legendre', 'Chebyshev'))
plt.show()
Demo - Cubic nonlinear Klein-Gordon equation¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. This is a demonstration of how the Python module shenfun can be used to solve the time-dependent,
nonlinear Klein-Gordon equation, in a triply periodic domain. The demo is implemented in
a single Python file KleinGordon.py, and it may be run
in parallel using MPI. The Klein-Gordon equation is solved using a mixed
formulation. The discretization, and some background on the spectral Galerkin
method is given first, before we turn to the actual details of the shenfun
implementation.
The nonlinear Klein-Gordon equation¶
Movie showing the evolution of the solution \(u\) from Eq. (1), in a slice through the center of the domain, computed with the code described in this demo.
Model equation¶
The cubic nonlinear Klein-Gordon equation is a wave equation important for many scientific applications such as solid state physics, nonlinear optics and quantum field theory [Waz08]. The equation is given as
with initial conditions
The spatial coordinates are here denoted as \(\boldsymbol{x} = (x, y, z)\), and \(t\) is time. The parameter \(\gamma=\pm 1\) determines whether the equations are focusing (\(+1\)) or defocusing (\(-1\)) (in the movie we have used \(\gamma=1\)). The domain \(\Omega=[-2\pi, 2\pi]^3\) is triply periodic and initial conditions will here be set as
We will solve these equations using a mixed formulation and a spectral Galerkin method. The mixed formulation reads
The energy of the solution can be computed as
and it is crucial that this energy remains constant in time.
The movie (The nonlinear Klein-Gordon equation) is showing the solution \(u\), computed with the code shown in the bottom of Sec. Complete solver.
Spectral Galerkin formulation¶
The PDEs in (5) and (6) can be solved with many different numerical methods. We will here use the shenfun software and this software makes use of the spectral Galerkin method. Being a Galerkin method, we need to reshape the governing equations into proper variational forms, and this is done by multiplying (5) and (6) with the complex conjugate of proper test functions and then integrating over the domain. To this end we use testfunctions \(g\in V(\Omega)\) with Eq. (5) and \(v \in V(\Omega)\) with Eq. (6), where \(V(\omega)\) is a suitable function space, and obtain
Note that the overline is used to indicate a complex conjugate, and \(w\) is a weight function associated with the test functions. The functions \(f\) and \(u\) are now to be considered as trial functions, and the integrals over the domain are often referred to as inner products. With inner product notation
and an integration by parts on the Laplacian, the variational problem can be formulated as:
The time and space discretizations are still left open. There are numerous different approaches that one could take for discretizing in time, and the first two terms on the right hand side of (10) can easily be treated implicitly as well as explicitly. However, the approach we will follow in Sec. (Runge-Kutta integrator) is a fully explicit 4th order Runge-Kutta method.
Discretization¶
To find a numerical solution we need to discretize the continuous problem (10) and (11) in space as well as time. Since the problem is triply periodic, Fourier exponentials are normally the best choice for trial and test functions, and as such we use basis functions
where \(l\) is the wavenumber, and \(\underline{l}=\frac{2\pi}{L}l\) is the scaled wavenumber, scaled with domain length \(L\) (here \(4\pi\)). Since we want to solve these equations on a computer, we need to choose a finite number of test functions. A function space \(V^N\) can be defined as
where \(N\) is chosen as an even positive integer and \(\boldsymbol{l} = (-N/2, -N/2+1, \ldots, N/2-1)\). And now, since \(\Omega\) is a three-dimensional domain, we can create tensor products of such bases to get, e.g., for three dimensions
where \(\boldsymbol{N} = (N, N, N)\). Obviously, it is not necessary to use the same number (\(N\)) of basis functions for each direction, but it is done here for simplicity. A 3D tensor product basis function is now defined as
where the indices for \(y\)- and \(z\)-direction are \(\underline{m}=\frac{2\pi}{L}m, \underline{n}=\frac{2\pi}{L}n\), and \(\boldsymbol{m}\) and \(\boldsymbol{n}\) are the same as \(\boldsymbol{l}\) due to using the same number of basis functions for each direction. One distinction, though, is that for the \(z\)-direction expansion coefficients are only stored for \(n=(0, 1, \ldots, N/2)\) due to Hermitian symmetry (real input data).
We now look for solutions of the form
The expansion coefficients \(\hat{\boldsymbol{u}} = \{\hat{u}_{lmn}(t)\}_{(l,m,n) \in \boldsymbol{l} \times \boldsymbol{m} \times \boldsymbol{n}}\) can be related directly to the solution \(u(x, y, z, t)\) using Fast Fourier Transforms (FFTs) if we are satisfied with obtaining the solution in quadrature points corresponding to
Note that these points are different from the standard (like \(2\pi j/N\)) since the domain is set to \([-2\pi, 2\pi]^3\) and not the more common \([0, 2\pi]^3\). We have
with \(\boldsymbol{u} = \{u(x_i, y_j, z_k)\}_{(i,j,k)\in \boldsymbol{i} \times \boldsymbol{j} \times \boldsymbol{k}}\) and where \(\mathcal{F}_i^{-1}\) is the inverse Fourier transform along the direction of index \(i\), for all \((j, k) \in \boldsymbol{j} \times \boldsymbol{k}\). Note that the three inverse FFTs are performed sequentially, one direction at the time, and that there is no scaling factor due to the definition used for the inverse Fourier transform
Note that this differs from the definition used by, e.g., Numpy.
The inner products used in Eqs. (10), (11) may be computed using forward FFTs. However, there is a tiny detail that deserves a comment. The regular Fourier inner product is given as
where a weight function is chosen as \(w(x) = 1\) and \(\delta_{kl}\) equals unity for \(k=l\) and zero otherwise. In Shenfun we choose instead to use a weight function \(w(x)=1/L\), such that the weighted inner product integrates to unity:
With this weight function the scalar product and the forward transform are the same and we obtain:
From this we see that the variational forms (10) and (11) may be written in terms of the Fourier transformed quantities \(\hat{\boldsymbol{u}}\) and \(\hat{\boldsymbol{f}}\). Expanding the exact derivatives of the nabla operator, we have
and as such the equations to be solved for each wavenumber can be found directly as
There is more than one way to arrive at these equations. Taking the 3D Fourier
transform of both equations (5) and (6) is one obvious way.
With the Python module shenfun, one can work with the
inner products as seen in (10) and (11), or the Fourier
transforms directly. See for example Sec. Runge-Kutta integrator for how \((\nabla u, \nabla
v)\) can be
implemented. In short, shenfun contains all the tools required to work with
the spectral Galerkin method, and we will now see how shenfun can be used to solve
the Klein-Gordon equation.
For completion, we note that the discretized problem to solve can be formulated with the Galerkin method as: for all \(t>0\), find \((f, u) \in W^N \times W^N\) such that
where \(u(x, y, z, 0)\) and \(f(x, y, z, 0)\) are given as the initial conditions according to Eq. (2).
Implementation¶
To solve the Klein-Gordon equations we need to make use of the Fourier bases in
shenfun, and these base are found in submodule
shenfun.fourier.bases.
The triply periodic domain allows for Fourier in all three directions, and we
can as such create one instance of this base class using Basis() with
family Fourier
for each direction. However, since the initial data are real, we
can take advantage of Hermitian symmetries and thus make use of a
real to complex class for one (but only one) of the directions, by specifying
dtype='d'. We can only make use of the
real-to-complex class for the direction that we choose to transform first with the forward
FFT, and the reason is obviously that the output from a forward transform of
real data is now complex. We may start implementing the solver as follows
from shenfun import *
from mpi4py import MPI
import numpy as np
# Set size of discretization
N = (32, 32, 32)
# Create bases
K0 = Basis(N[0], 'F', domain=(-2*np.pi, 2*np.pi), dtype='D')
K1 = Basis(N[1], 'F', domain=(-2*np.pi, 2*np.pi), dtype='D')
K2 = Basis(N[2], 'F', domain=(-2*np.pi, 2*np.pi), dtype='d')
We now have three instances K0, K1 and K2, corresponding to the space
(13), that each can be used to solve
one-dimensional problems. However, we want to solve a 3D problem, and for this
we need a tensor product space, like (14), created as a tensor
product of these three spaces
# Create communicator
comm = MPI.COMM_WORLD
T = TensorProductSpace(comm, (K0, K1, K2), **{'planner_effort':
'FFTW_MEASURE'})
Here the planner_effort, which is a flag used by FFTW, is optional. Possibel choices are from the list
(FFTW_ESTIMATE, FFTW_MEASURE, FFTW_PATIENT, FFTW_EXHAUSTIVE), and the
flag determines how much effort FFTW puts in looking for an optimal algorithm
for the current platform. Note that it is also possible to use FFTW wisdom with
shenfun, and as such, for production, one may perform exhaustive planning once
and then simply import the result of that planning later, as wisdom.
The TensorProductSpace instance T contains pretty much all we need for
computing inner products or fast transforms between real and wavenumber space.
However, since we are going to solve for a mixed system, it is convenient to also use the
MixedTensorProductSpace class
TT = MixedTensorProductSpace([T, T])
We need containers for the solution as well as intermediate work arrays for, e.g., the Runge-Kutta method. Arrays are created as
uf = Array(TT) # Solution array in physical space
u, f = uf # Split solution array by creating two views u and f
duf = Function(TT) # Array for right hand sides
du, df = duf # Split into views
uf_hat = Function(TT) # Solution in spectral space
uf_hat0 = Function(TT) # Work array 1
uf_hat1 = Function(TT) # Work array 2
u_hat, f_hat = uf_hat # Split into views
The Array class is a subclass of Numpy’s ndarray,
without much more functionality than constructors that return arrays of the
correct shape according to the basis used in the construction. The
Array represents the left hand side of (16),
evaluated on the quadrature mesh. A different type
of array is returned by the Function
class, that subclasses both Nympy’s ndarray as well as an internal
BasisFunction
class. An instance of the Function represents the entire
spectral Galerkin function (16). As such, it can
be used in complex variational linear forms. For example, if you want
to compute the partial derivative \(\partial u/\partial x\), then this
may be achieved by projection, i.e., find \(u_x \in V^N\) such that
\((u_x-\partial u/\partial x, v) = 0\), for all \(v \in V^N\). This
projection may be easily computed in shenfun using
ux = project(Dx(u_hat, 0, 1), T)
The following code, on the other hand, will raise an error since you cannot
take the derivative of an interpolated Array u, only a Function
try:
project(Dx(u, 0, 1), T)
except AssertionError:
print("AssertionError: Dx not for Arrays")
Initialization¶
The solution array uf and its transform uf_hat need to be initialized according to Eq.
(2). To this end it is convenient (but not required, we could just as
easily use Numpy for this as well) to use Sympy, which is a Python library for symbolic
mathamatics.
from sympy import symbols, exp, lambdify
x, y, z = symbols("x,y,z")
ue = 0.1*exp(-(x**2 + y**2 + z**2))
ul = lambdify((x, y, z), ue, 'numpy')
X = T.local_mesh(True)
u[:] = Array(T, buffer=ul(*X))
u_hat = T.forward(u, u_hat)
Here X is a list of the three mesh coordinates (x, y, z) local to the
current processor. Each processor has its own part of the computational mesh,
and the distribution is handled during the creation of the
TensorProductSpace
class instance T. There is no need
to do anything about the f/f_hat arrays since they are already initialized by default to
zero. Note that calling the ul function with the argument *X is the same as
calling with X[0], X[1], X[2].
Runge-Kutta integrator¶
A fourth order explicit Runge-Kutta integrator requires only a function that returns the right hand sides of (26) and (27). Such a function can be implemented as
# focusing (+1) or defocusing (-1)
gamma = 1
uh = TrialFunction(T)
vh = TestFunction(T)
k2 = -(inner(grad(vh), grad(uh)).scale + gamma)
def compute_rhs(duf_hat, uf_hat, up, Tp, w0):
duf_hat.fill(0)
u_hat, f_hat = uf_hat
du_hat, df_hat = duf_hat
df_hat[:] = k2*u_hat
up = Tp.backward(u_hat, up)
df_hat += Tp.forward(gamma*up**3, w0)
du_hat[:] = f_hat
return duf_hat
The code is fairly self-explanatory. k2 represents the coefficients in front of
the linear \(\hat{u}\) in (26). The output array is duf_hat, and
the input array is uf_hat, whereas up and w0 are work arrays. The array
duf_hat contains the right hand sides of both (26) and
(27), where the linear and nonlinear terms are recognized in the
code as comments (1) and (2).
The array uf_hat contains the solution at initial and intermediate Runge-Kutta steps.
With a function that returns the right hand side in place, the actual integrator can be implemented as
w0 = Function(T)
a = [1./6., 1./3., 1./3., 1./6.] # Runge-Kutta parameter
b = [0.5, 0.5, 1.] # Runge-Kutta parameter
t = 0
dt = 0.01
end_time = 1.0
while t < end_time-1e-8:
t += dt
uf_hat1[:] = uf_hat0[:] = uf_hat
for rk in range(4):
duf = compute_rhs(duf, uf_hat, u, T, w0)
if rk < 3:
uf_hat[:] = uf_hat0 + b[rk]*dt*duf
uf_hat1 += a[rk]*dt*duf
uf_hat[:] = uf_hat1
Complete solver¶
A complete solver is given below, with intermediate plotting of the solution and intermediate computation of the total energy. Note that the total energy is unchanged to 8 decimal points at \(t=100\).
from sympy import symbols, exp, lambdify
import numpy as np
import matplotlib.pyplot as plt
from mpi4py import MPI
from time import time
from shenfun import *
comm = MPI.COMM_WORLD
rank = comm.Get_rank()
# Use sympy to set up initial condition
x, y, z = symbols("x,y,z")
ue = 0.1*exp(-(x**2 + y**2 + z**2))
ul = lambdify((x, y, z), ue, 'numpy')
# Size of discretization
N = (64, 64, 64)
# Defocusing or focusing
gamma = 1
K0 = Basis(N[0], 'F', domain=(-2*np.pi, 2*np.pi), dtype='D')
K1 = Basis(N[1], 'F', domain=(-2*np.pi, 2*np.pi), dtype='D')
K2 = Basis(N[2], 'F', domain=(-2*np.pi, 2*np.pi), dtype='d')
T = TensorProductSpace(comm, (K0, K1, K2), slab=False,
**{'planner_effort': 'FFTW_MEASURE'})
TT = MixedTensorProductSpace([T, T])
X = T.local_mesh(True)
uf = Array(TT)
u, f = uf[:]
up = Array(T)
duf = Function(TT)
du, df = duf[:]
uf_hat = Function(TT)
uf_hat0 = Function(TT)
uf_hat1 = Function(TT)
w0 = Function(T)
u_hat, f_hat = uf_hat[:]
# initialize (f initialized to zero, so all set)
u[:] = ul(*X)
u_hat = T.forward(u, u_hat)
uh = TrialFunction(T)
vh = TestFunction(T)
k2 = -inner(grad(vh), grad(uh)).scale - gamma
count = 0
def compute_rhs(duf_hat, uf_hat, up, T, w0):
global count
count += 1
duf_hat.fill(0)
u_hat, f_hat = uf_hat[:]
du_hat, df_hat = duf_hat[:]
df_hat[:] = k2*u_hat
up = T.backward(u_hat, up)
df_hat += T.forward(gamma*up**3, w0)
du_hat[:] = f_hat
return duf_hat
def energy_fourier(comm, a):
result = 2*np.sum(abs(a[..., 1:-1])**2) + np.sum(abs(a[..., 0])**2) + np.sum(abs(a[..., -1])**2)
result = comm.allreduce(result)
return result
# Integrate using a 4th order Rung-Kutta method
a = [1./6., 1./3., 1./3., 1./6.] # Runge-Kutta parameter
b = [0.5, 0.5, 1.] # Runge-Kutta parameter
t = 0.0
dt = 0.005
end_time = 1.
tstep = 0
if rank == 0:
plt.figure()
image = plt.contourf(X[1][..., 0], X[0][..., 0], u[..., 16], 100)
plt.draw()
plt.pause(1e-4)
t0 = time()
K = np.array(T.local_wavenumbers(True, True, True))
TV = VectorTensorProductSpace([T, T, T])
gradu = Array(TV)
while t < end_time-1e-8:
t += dt
tstep += 1
uf_hat1[:] = uf_hat0[:] = uf_hat
for rk in range(4):
duf = compute_rhs(duf, uf_hat, up, T, w0)
if rk < 3:
uf_hat[:] = uf_hat0 + b[rk]*dt*duf
uf_hat1 += a[rk]*dt*duf
uf_hat[:] = uf_hat1
if tstep % 100 == 0:
uf = TT.backward(uf_hat, uf)
ekin = 0.5*energy_fourier(T.comm, f_hat)
es = 0.5*energy_fourier(T.comm, 1j*K*u_hat)
eg = gamma*np.sum(0.5*u**2 - 0.25*u**4)/np.prod(np.array(N))
eg = comm.allreduce(eg)
gradu = TV.backward(1j*K*u_hat, gradu)
ep = comm.allreduce(np.sum(f*gradu)/np.prod(np.array(N)))
ea = comm.allreduce(np.sum(np.array(X)*(0.5*f**2 + 0.5*gradu**2
- (0.5*u**2 - 0.25*u**4)*f))/np.prod(np.array(N)))
if rank == 0:
image.ax.clear()
image.ax.contourf(X[1][..., 0], X[0][..., 0], u[..., 16], 100)
plt.pause(1e-6)
plt.savefig('Klein_Gordon_{}_real_{}.png'.format(N[0], tstep))
print("Time = %2.2f Total energy = %2.8e Linear momentum %2.8e Angular momentum %2.8e" %(t, ekin+es+eg, ep, ea))
comm.barrier()
print("Time ", time()-t0)
Demo - 3D Poisson’s equation¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. This is a demonstration of how the Python module shenfun can be used to solve a 3D Poisson equation in a 3D tensor product domain that has homogeneous Dirichlet boundary conditions in one direction and periodicity in the remaining two. The solver described runs with MPI without any further considerations required from the user. Spectral convergence, as shown in Figure Convergence of 3D Poisson solvers for both Legendre and Chebyshev modified basis function, is demonstrated. The demo is implemented in a single Python file dirichlet_poisson3D.py, and the numerical method is is described in more detail by J. Shen [She94] and [She95].
Convergence of 3D Poisson solvers for both Legendre and Chebyshev modified basis function¶
Model problem¶
Poisson equation¶
The Poisson equation is given as
where \(u(\boldsymbol{x})\) is the solution and \(f(\boldsymbol{x})\) is a function. The domain \(\Omega = [-1, 1]\times [0, 2\pi]^2\).
To solve Eq. (1) with the Galerkin method we need smooth basis functions, \(v(\boldsymbol{x})\), that live in the Hilbert space \(H^1(\Omega)\) and that satisfy the given boundary conditions. To this end we will use one basis function for the \(x\)-direction, \(\mathcal{X}(x)\), one for the \(y\)-direction, \(\mathcal{Y}(y)\), and one for the \(z\)-direction, \(\mathcal{Z}(z)\). And then we create three-dimensional basis functions like
The basis functions \(\mathcal{Y}(y)\) and \(\mathcal{Z}(z)\) are chosen as Fourier exponentials, since these functions are periodic. Likewise, the basis functions \(\mathcal{X}(x)\) are chosen as modified Legendre or Chebyshev polynomials, using \(\phi_l(x)\) to refer to either one
where the size of the discretized problem is \(\boldsymbol{N} = (N_0, N_1, N_2)\), \(\boldsymbol{l}^{N_0} = (0, 1, \ldots, N_0-3)\), \(\boldsymbol{m}^{N_1} = (-N_1/2, -N_1/2+1, \ldots, N_1/2-1)\) and \(\boldsymbol{n}^{N_2} = (-N_2/2, -N_2/2+1, \ldots, N_2/2-1)\). However, due to Hermitian symmetry, we only store \(N_2/2+1\) wavenumbers in the \(z\)-direction, such that \(\boldsymbol{n}^{N_2} = (0, 1, \ldots, N_2/2)\). We refer to the Cartesian wavenumber mesh on vector form as \(\boldsymbol{k}\):
We have the one-dimensional spaces
and from these we create a tensor product space \(W^{\boldsymbol{N}}(\boldsymbol{x})\)
And then we look for discrete solutions \(u \in W^{\boldsymbol{N}}\) like
where \(\hat{u}_{lmn}\) are components of the expansion coefficients for \(u\) and the second form, \(\{\hat{u}_{\boldsymbol{\textsf{k}}}\}_{\boldsymbol{\textsf{k}}\in\boldsymbol{k}}\), is a shorter, simplified notation, with sans-serif \(\boldsymbol{\textsf{k}}=(l, m, n)\). The expansion coefficients are the unknowns in the spectral Galerkin method.
We now formulate a variational problem using the Galerkin method: Find \(u \in W^{\boldsymbol{N}}\) such that
Here \(\boldsymbol{dx}=dxdydz\), and the overline represents a complex conjugate, which is needed here because the Fourier exponentials are complex functions. The weighted integrals, weighted by \(w(\boldsymbol{x})\), are called inner products, and a common notation is
The integral can either be computed exactly, or with quadrature. The advantage of the latter is that it is generally faster, and that non-linear terms may be computed just as quickly as linear. For a linear problem, it does not make much of a difference, if any at all. Approximating the integral with quadrature, we obtain
where \(w(\boldsymbol{x})\) now are the quadrature weights. The quadrature points \(\{x_i\}_{i=0}^{N_0-1}\) are specific to the chosen basis, and even within basis there are two different choices based on which quadrature rule is selected, either Gauss or Gauss-Lobatto. The quadrature points for the Fourier bases are the uniform \(\{y_j\}_{j=0}^{N_1-1}=2\pi j / N_1\) and \(\{z_k\}_{k=0}^{N_2-1} = 2 \pi k/N_2\).
Inserting for test function (12) and trialfunction \(v_{pqr} = \mathcal{X}_{p} \mathcal{Y}_q \mathcal{Z}_r\) on the left hand side of (14), we get
where the notation \((\cdot, \cdot)_w^{N_0}\)
is used to represent an \(L_2\) inner product along only the first, nonperiodic, direction. The delta functions above come from integrating over the two periodic directions, where we use constant weight functions \(w=1/(2\pi)\) in the inner products
The Kronecker delta-function \(\delta_{ij}\) is one for \(i=j\) and zero otherwise.
The right hand side of Eq. (14) is computed as
where a tilde is used because this is not a complete transform of the function \(f\), but only an inner product.
The linear system of equations to solve for the expansion coefficients can now be found as follows
Now, when \(\hat{\boldsymbol{u}} = \{\hat{u}_{\boldsymbol{\textsf{k}}}\}_{\boldsymbol{\textsf{k}} \in \boldsymbol{k}}\) is
found by solving this linear system over the
entire computational mesh, it may be
transformed to real space \(u(\boldsymbol{x})\) using (12). Note that the matrices
\(A \in \mathbb{R}^{N_0-3 \times N_0-3}\) and \(B \in \mathbb{R}^{N_0-3 \times N_0-3}\)
differ for Legendre or Chebyshev bases, but
for either case they have a
special structure that allows for a solution to be found very efficiently
in the order of \(\mathcal{O}(N_0-3)\) operations given \(m\) and \(n\), see
[She94] and [She95]. Fast solvers for (22) are implemented in shenfun for both bases.
Method of manufactured solutions¶
In this demo we will use the method of manufactured
solutions to demonstrate spectral accuracy of the shenfun bases. To
this end we choose a smooth analytical function that satisfies the given boundary
conditions:
Sending \(u_e\) through the Laplace operator, we obtain the right hand side
Now, setting \(f_e(\boldsymbol{x}) = \nabla^2 u_e(\boldsymbol{x})\) and solving for \(\nabla^2 u(\boldsymbol{x}) = f_e(\boldsymbol{x})\), we can compare the numerical solution \(u(\boldsymbol{x})\) with the analytical solution \(u_e(\boldsymbol{x})\) and compute error norms.
Implementation¶
Preamble¶
We will solve the Poisson problem using the shenfun Python module. The first thing needed is then to import some of this module’s functionality plus some other helper modules, like Numpy and Sympy:
from sympy import symbols, cos, sin, exp, lambdify
import numpy as np
from shenfun.tensorproductspace import TensorProductSpace
from shenfun import inner, div, grad, TestFunction, TrialFunction, Function, \
project, Dx, Basis
from mpi4py import MPI
We use Sympy for the manufactured solution and Numpy for testing. MPI for
Python (mpi4py) is required for running the solver with MPI.
Manufactured solution¶
The exact solution \(u_e(x, y, z)\) and the right hand side \(f_e(x, y, z)\) are created using Sympy as follows
x, y, z = symbols("x,y,z")
ue = (cos(4*x) + sin(2*y) + sin(4*z))*(1-x**2)
fe = ue.diff(x, 2) + ue.diff(y, 2) + ue.diff(z, 2)
# Lambdify for faster evaluation
ul = lambdify((x, y, z), ue, 'numpy')
fl = lambdify((x, y, z), fe, 'numpy')
These solutions are now valid for a continuous domain. The next step is thus to discretize, using the computational mesh
and a finite number of basis functions.
Note that it is not mandatory to use Sympy for the manufactured solution. Since the
solution is known (24), we could just as well simply use Numpy
to compute \(f_e\). However, with Sympy it is much
easier to experiment and quickly change the solution.
Discretization and MPI¶
We create three bases with given size, one for each dimension of the problem.
From these three bases a TensorProductSpace is created.
# Size of discretization
N = [14, 15, 16]
SD = Basis(N[0], 'Chebyshev', bc=(0, 0))
#SD = Basis(N[0], 'Legendre', bc=(0, 0))
K1 = Basis(N[1], 'Fourier', dtype='D')
K2 = Basis(N[2], 'Fourier', dtype='d')
T = TensorProductSpace(comm, (SD, K1, K2), axes=(0, 1, 2))
X = T.local_mesh()
Note that we can either choose a Legendre or a Chebyshev basis for the
nonperiodic direction. The
TensorProductSpace class takes an MPI communicator as first argument and the
computational mesh is distributed internally using the pencil method. The
T.local_mesh method returns the mesh local to each processor. The axes
keyword determines the order of transforms going back and forth between real and
spectral space. With axes=(0, 1, 2) and a forward transform (from real space
to spectral, i.e., from \(u\) to \(\hat{u}\)) axis 2 is transformed first and then 1
and 0, respectively.
The manufactured solution is created with Dirichlet boundary conditions in the
\(x\)-direction, and for this reason SD is the first basis in T. We could just
as well have put the nonperiodic direction along either \(y\)- or \(z\)-direction,
though, but this would then require that the order of the transformed axes be
changed as well. For example, putting the Dirichlet direction along \(y\), we
would need to create the tensorproductspace as
T = TensorProductSpace(comm, (K1, SD, K2), axes=(1, 0, 2))
such that the Dirichlet direction is the last to be transformed. The reason for
this is that only the Dirichlet direction leads to matrices that need to be
inverted (or solved). And for this we need the entire data array along the Dirichlet
direction to be local to the processor. If the SD basis is the last to be
transformed, then the data will be aligned in this direction, whereas the other
two directions may both, or just one of them, be distributed.
Note that X is a list containing local values of the arrays \(\{x_i\}_{i=0}^{N_0-1}\),
\(\{y_j\}_{j=0}^{N_1-0}\) and \(\{z_k\}_{k=0}^{N_2-1}\). For example, using 4
procesors and a processor mesh of shape \(2\times 2\), then the local slices for
each processor in spectral space are
>>> print(comm.Get_rank(), T.local_slice())
3 [slice(0, 14, None), slice(8, 15, None), slice(5, 9, None)]
1 [slice(0, 14, None), slice(0, 8, None), slice(5, 9, None)]
2 [slice(0, 14, None), slice(8, 15, None), slice(0, 5, None)]
0 [slice(0, 14, None), slice(0, 8, None), slice(0, 5, None)]
where the global shape is \(\boldsymbol{N}=(14, 15, 9)\) after taking advantage of Hermitian symmetry in the \(z\)-direction. So, all processors have the complete first dimension available locally, as they should. Furthermore, processor three owns the slices from \(8:15\) and \(5:9\) along axes \(y\) and \(z\), respectively. Processor 2 owns slices \(0:8\) and \(0:5\) etc. In real space the mesh is distributed differently. First of all the global mesh shape is \(\boldsymbol{N}=(14, 15, 16)\), and it is distributed along the first two dimensions. The local slices can be inspected as
>>> print(comm.Get_rank(), T.local_slice(False))
0 [slice(0, 7, None), slice(0, 8, None), slice(0, 16, None)]
1 [slice(0, 7, None), slice(8, 15, None), slice(0, 16, None)]
2 [slice(7, 14, None), slice(0, 8, None), slice(0, 16, None)]
3 [slice(7, 14, None), slice(8, 15, None), slice(0, 16, None)]
Since two directions are distributed, both in spectral and real space, we say that we have a two-dimensional decomposition (here a \(2\times 2\) shaped processor mesh) and the MPI distribution is of type pencil. It is also possible to choose a slab decomposition, where only one dimension of the array is distributed. This choice needs to be made when creating the tensorproductspace as
T = TensorProductSpace(comm, (SD, K1, K2), axes=(0, 1, 2), slab=True)
which will lead to a mesh that is distributed along \(x\)-direction in real space and \(y\)-direction in spectral space. The local slices are
>>> print(comm.Get_rank(), T.local_slice()) # spectral space
1 [slice(0, 14, None), slice(4, 8, None), slice(0, 9, None)]
2 [slice(0, 14, None), slice(8, 12, None), slice(0, 9, None)]
0 [slice(0, 14, None), slice(0, 4, None), slice(0, 9, None)]
3 [slice(0, 14, None), slice(12, 15, None), slice(0, 9, None)]
>>> print(comm.Get_rank(), T.local_slice(False)) # real space
3 [slice(11, 14, None), slice(0, 15, None), slice(0, 16, None)]
0 [slice(0, 4, None), slice(0, 15, None), slice(0, 16, None)]
2 [slice(8, 11, None), slice(0, 15, None), slice(0, 16, None)]
1 [slice(4, 8, None), slice(0, 15, None), slice(0, 16, None)]
Note that the slab decomposition is usually the fastest choice. However, the maximum number of processors with slab is \(\min \{N_0, N_1\}\), whereas a pencil approach can be used with up to \(\min \{N_1(N_2/2+1), N_0 N_1\}\) processors.
Variational formulation¶
The variational problem (14) can be assembled using shenfun’s
form language, which is perhaps surprisingly similar to FEniCS.
u = TrialFunction(T)
v = TestFunction(T)
K = T.local_wavenumbers()
# Get f on quad points
fj = Array(T, buffer=fl(*X))
# Compute right hand side of Poisson equation
f_hat = inner(v, fj)
# Get left hand side of Poisson equation
matrices = inner(v, div(grad(u)))
The Laplacian operator is recognized as div(grad). The matrices object is a
dictionary representing the left hand side of (22), and there are two
keys: (ADDmat, BDDmat). The value of matrices["ADDmat"] is an object of
type SpectralMatrix,
which is shenfun’s type for a matrix. This matrix represents \(A_{lj}\), see
(22), and it has an attribute scale that is
equal to \((2\pi)^2\) (also see (22)). The other key in matrices
is BDDmat, and the value here is a SpectralMatrix representing \(B_{lj}\) from
(22). This matrix has an attribute scale that is equal to \(m^2+n^2\).
This scale is stored as a numpy array of shape \((1, 15, 9)\), representing the
set
\(\{m^2+n^2: (m, n) \in \boldsymbol{m}^{N_1} \times \boldsymbol{n}^{N_2}\}\). Note that \(\boldsymbol{n}^{N_2}\) is stored
simply as an array of length \(N_2/2+1\) (here 9), since the transform in direction \(z\)
takes a real signal and transforms it taking advantage of Hermitian symmetry,
see rfft.
Solve linear equations¶
Finally, solve linear equation system and transform solution from spectral \(\hat{u}_{\boldsymbol{\textsf{k}}}\) vector to the real space \(u(\boldsymbol{x})\) and then check how the solution corresponds with the exact solution \(u_e\).
# Create Helmholtz linear algebra solver
H = Solver(*matrices)
# Solve and transform to real space
u_hat = Function(T) # Solution spectral space
u_hat = H(u_hat, f_hat) # Solve
uq = T.backward(u_hat)
# Compare with analytical solution
uj = ul(*X)
error = comm.reduce(np.linalg.norm(uj-uq)**2)
if comm.Get_rank() == 0:
print("Error=%2.16e" %(np.sqrt(error)))
Convergence test¶
A complete solver is given in Sec. Complete solver. This solver is created such that it takes in two commandline arguments and prints out the \(L_2\)-errornorm of the solution in the end. We can use this to write a short script that performs a convergence test. The solver is run like
>>> python dirichlet_poisson3D.py 32 legendre
Error=6.5955040031498912e-10
for a discretization of size \(\boldsymbol{N}= N^3 = 32^3\) and for the Legendre basis.
Alternatively, change legendre to chebyshev for the Chebyshev basis.
We set up the solver to run for a list of \(N=[8, 10, \ldots, 38]\), and collect the errornorms in arrays to be plotted. Such a script can be easily created with the subprocess module
import subprocess
from numpy import log, array
from matplotlib import pyplot as plt
N = range(8, 40, 2)
error = {}
for basis in ('legendre', 'chebyshev'):
error[basis] = []
for i in range(len(N)):
output = subprocess.check_output("python dirichlet_poisson3D.py {} {}".format(N[i], basis), shell=True)
exec(output) # Error is printed as "Error=%2.16e"%(np.linalg.norm(uj-ua))
error[basis].append(Error)
if i == 0:
print("Error hmin r ")
print("%2.8e %2.8e %2.8f"%(error[basis][-1], 1./N[i], 0))
if i > 0:
print("%2.8e %2.8e %2.8f"%(error[basis][-1], 1./N[i], log(error[basis][-1]/error[basis][-2])/log(N[i-1]/N[i])))
The error can be plotted using matplotlib, and the generated figure is shown in the summary’s Fig. Convergence of 3D Poisson solvers for both Legendre and Chebyshev modified basis function. The spectral convergence is evident and we can see that after \(N=25\) roundoff errors dominate as the errornorm trails off around \(10^{-13}\).
plt.figure(figsize=(6, 4))
for basis, col in zip(('legendre', 'chebyshev'), ('r', 'b')):
plt.semilogy(N, error[basis], col, linewidth=2)
plt.title('Convergence of Poisson solvers 3D')
plt.xlabel('N')
plt.ylabel('Error norm')
plt.legend(('Legendre', 'Chebyshev'))
plt.savefig('poisson3D_errornorm.png')
plt.show()
Complete solver¶
A complete solver, that can use either Legendre or Chebyshev bases, and any quadrature size chosen as a command-line argument, is shown below.
>>> python dirichlet_poisson3D.py 36 legendre
or similarly with chebyshev instead of legendre.
import sys, os
import importlib
from sympy import symbols, cos, sin, lambdify
import numpy as np
from shenfun import inner, div, grad, TestFunction, TrialFunction, Array, \
Function, Basis, TensorProductSpace
import time
from mpi4py import MPI
try:
import matplotlib.pyplot as plt
except ImportError:
plt = None
comm = MPI.COMM_WORLD
assert len(sys.argv) == 3
assert sys.argv[-1].lower() in ('legendre', 'chebyshev')
assert isinstance(int(sys.argv[-2]), int)
# Collect basis and solver from either Chebyshev or Legendre submodules
family = sys.argv[-1].lower()
base = importlib.import_module('.'.join(('shenfun', family)))
Solver = base.la.Helmholtz
# Use sympy to compute a rhs, given an analytical solution
a = -0
b = 0
x, y, z = symbols("x,y,z")
ue = (cos(4*x) + sin(2*y) + sin(4*z))*(1-z**2) + a*(1 + z)/2. + b*(1 - z)/2.
fe = ue.diff(x, 2) + ue.diff(y, 2) + ue.diff(z, 2)
# Lambdify for faster evaluation
ul = lambdify((x, y, z), ue, 'numpy')
fl = lambdify((x, y, z), fe, 'numpy')
# Size of discretization
N = int(sys.argv[-2])
N = [N, N, N]
SD = Basis(N[0], family=family, bc=(a, b))
K1 = Basis(N[1], family='F', dtype='D')
K2 = Basis(N[2], family='F', dtype='d')
T = TensorProductSpace(comm, (K1, K2, SD), axes=(0, 1, 2), slab=True)
X = T.local_mesh()
u = TrialFunction(T)
v = TestFunction(T)
K = T.local_wavenumbers()
# Get f on quad points
fj = Array(T, buffer=fl(*X))
# Compute right hand side of Poisson equation
f_hat = inner(v, fj)
if family == 'legendre':
f_hat *= -1.
# Get left hand side of Poisson equation
if family == 'chebyshev':
matrices = inner(v, div(grad(u)))
else:
matrices = inner(grad(v), grad(u))
# Create Helmholtz linear algebra solver
H = Solver(*matrices)
# Solve and transform to real space
u_hat = Function(T) # Solution spectral space
t0 = time.time()
u_hat = H(u_hat, f_hat) # Solve
uq = T.backward(u_hat, fast_transform=False)
# Compare with analytical solution
uj = ul(*X)
error = comm.reduce(np.linalg.norm(uj-uq)**2)
if comm.Get_rank() == 0:
print("Error=%2.16e" %(np.sqrt(error)))
Demo - Helmholtz equation in polar coordinates¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. This is a demonstration of how the Python module shenfun can be used to solve the Helmholtz equation on a circular disc, using polar coordinates. This demo is implemented in a single Python file unitdisc_helmholtz.py, and the numerical method is described in more detail by J. Shen [She97].
Helmholtz on the unit disc¶
Helmholtz equation¶
The Helmholtz equation is given as
where \(u(\boldsymbol{x})\) is the solution, \(f(\boldsymbol{x})\) is a function and \(\alpha\) a constant. The domain is a circular disc \(\Omega = \{(x, y): x^2+y^2 < a^2\}\) with radius \(a\). We use polar coordinates \((\theta, r)\), defined as
which leads to a Cartesian product mesh \((\theta, r) \in [0, 2\pi) \times [0, a]\)
suitable for numerical implementations. Note that the
two directions are ordered with \(\theta\) first and then \(r\), which is less common
than \((r, \theta)\). This has to do with the fact that we will need to
solve linear equation systems along the radial direction, but not
the \(\theta\)-direction, since Fourier matrices are diagonal. When
the radial direction is placed last, the data in the radial direction
will be contigeous in a row-major C memory, leading to faster memory
access where it is needed the most. Note that it takes very few
changes in shenfun to switch the directions to \((r, \theta)\) if this
is still desired.
We will use Chebyshev or Legendre basis functions \(\psi_j(r)\) for the radial direction and a periodic Fourier expansion in \(\exp(\imath k \theta)\) for the azimuthal direction. The polar basis functions are as such
and we look for solutions
A discrete Fourier approximation space with \(N\) basis functions is then
where \(K = \{-N/2, -N/2+1, \ldots, N/2-1\}\). Since the solution \(u(\theta, r)\) is real, there is Hermitian symmetry and \(\hat{u}_{k,j} = \hat{u}_{k,-j}^*\) (with \(*\) denoting a complex conjugate). For this reason we use only \(k \in K=\{0, 1, \ldots, N/2\}\) in solving for \(\hat{u}_{kj}\), and then use Hermitian symmetry to get the remaining unknowns.
The radial basis is more tricky, because there is a nontrivial ‘boundary’ condition (pole condition) that needs to be applied at the center of the disc \((r=0)\)
To apply this condition we split the solution into Fourier coefficients with wavenumber 0 and \(K\backslash \{0\}\), remembering that the Fourier basis function with \(k=0\) is simply 1
We then apply a different radial basis for the two \(\psi\)’s in the above equation (renaming the first \(\overline{\psi}\))
Note that the first term \(\sum_{j} \hat{u}_{0j} \overline{\psi}_{j}(r)\) is independent of \(\theta\). Now, to enforce conditions
it is sufficient for the two bases (\(\overline{\psi}\) and \(\psi\)) to satisfy
Bases that satisfy these conditions can be found both with Legendre and Chebyshev polynomials. If \(\phi_j(x)\) is used for either the Legendre polynomial \(L_j(x)\) or the Chebyshev polynomial of the first kind \(T_j(x)\), we can have
Define the following approximation spaces for the radial direction
and split the function space for the azimuthal direction into
We then look for solutions
where
As such the Helmholtz problem is split in two smaller problems. The two problems read with the spectral Galerkin method:
Find \(u^0 \in V_F^0 \otimes V_U^N\) such that
Find \(u^1 \in V_F^1 \otimes V_D^N\) such that
Note that integration over the domain is done using polar coordinates with an integral measure of \(d\sigma=rdrd\theta\). However, the integral in the radial direction needs to be mapped to \(t=2r/a-1\), where \(t \in [-1, 1]\), which suits the basis functions used, see (17). This leads to a measure of \(0.5(t+1)adtd\theta\). Furthermore, the weight \(w(t)\) will be unity for the Legendre basis and \((1-t^2)^{-0.5}\) for the Chebyshev bases.
Implementation in shenfun¶
A complete implementation is found in the file unitdisc_helmholtz.py. Here we give a brief explanation for the implementation. Start by importing all functionality from shenfun and sympy, where Sympy is required for handeling the polar coordinates.
from shenfun import *
import sympy as sp
# Define polar coordinates using angle along first axis and radius second
theta, r = psi = sp.symbols('x,y', real=True, positive=True)
rv = (r*sp.cos(theta), r*sp.sin(theta)) # Map to Cartesian (x, y)
Note that Sympy symbols are both positive and real, \(\theta\) is
chosen to be along the first axis and \(r\) second. This has to agree with
the next step, which is the creation of tensorproductspaces
\(V_F^0 \otimes V_U^N\) and \(V_F^1 \otimes V_D^N\). We use
domain=(0, 1) for the radial direction to get a unit disc, whereas
the default domain for the Fourier bases is already the
required \((0, 2\pi)\).
N = 32
F = Basis(N, 'F', dtype='d')
F0 = Basis(1, 'F', dtype='d')
L = Basis(N, 'L', bc='Dirichlet', domain=(0, 1))
L0 = Basis(N, 'L', bc='UpperDirichlet', domain=(0, 1))
T = TensorProductSpace(comm, (F, L), axes=(1, 0), coordinates=(psi, rv))
T0 = TensorProductSpace(MPI.COMM_SELF, (F0, L0), axes=(1, 0), coordinates=(psi, rv))
Note that since F0 only has one component we could actually use
L0 without creating T0. But the code turns out to be simpler
if we use T0, much because the additional \(\theta\)-direction is
required for the polar coordinates to apply. Using one single basis
function for the \(\theta\) direction is as such a generic way to handle
polar 1D problems (i.e., problems that are only functions of the
radial direction, but still using polar coordinates).
Also note that F is created using the entire range of wavenumbers
even though it should not include wavenumber 0.
As such we need to make sure that the coefficient created for
\(k=0\) (i.e., \(\hat{u}^1_{0,j}\)) will be exactly zero.
Finally, note that
T0 is not distributed with MPI, which is accomplished using
MPI.COMM_SELF instead of comm (which equals MPI.COMM_WORLD).
The purely radial problem (8) is only solved on the one
processor with rank = 0.
Polar coordinates are ensured by feeding coordinates=(psi, rv)
to TensorProductSpace. Operators like div()
grad() and curl() will now work on
items of Function, TestFunction and
TrialFunction using a polar coordinate system.
To define the equations (8) and (27) we first declare these test- and trialfunctions, and then use code that is remarkably similar to the mathematics.
v = TestFunction(T)
u = TrialFunction(T)
v0 = TestFunction(T0)
u0 = TrialFunction(T0)
mats = inner(v, -div(grad(u))+alpha*u)
if comm.Get_rank() == 0:
mats0 = inner(v0, -div(grad(u0))+alpha*u0)
Here mats and mats0 will contain several tensor product
matrices in the form of
TPMatrix. Since there is only one non-periodic direction
the matrices can be easily solved using SolverGeneric1NP.
But first we need to define the function \(f(\theta, r)\).
To this end we use sympy and the method of
manufactured solution to define a possible solution ue,
and then compute f exactly using exact differentiation
# Manufactured solution
alpha = 2
ue = (r*(1-r))**2*sp.cos(8*theta)-0.1*(r-1)
f = -ue.diff(r, 2) - (1/r)*ue.diff(r, 1) - (1/r**2)*ue.diff(theta, 2) + alpha*ue
# Compute the right hand side on the quadrature mesh
fj = Array(T, buffer=f)
# Take scalar product
f_hat = Function(T)
f_hat = inner(v, fj, output_array=f_hat)
if T.local_slice(True)[0].start == 0: # The processor that owns k=0
f_hat[0] = 0
# For k=0 we solve only a 1D equation. Do the scalar product for Fourier
# coefficient 0 by hand (or sympy).
if comm.Get_rank() == 0:
f0_hat = Function(T0)
gt = sp.lambdify(r, sp.integrate(f, (theta, 0, 2*sp.pi))/2/sp.pi)(L0.mesh())
f0_hat = L0.scalar_product(gt, f0_hat)
Note that for \(u^0\) we perform the interal in the \(\theta\) direction
exactly using sympy. This is necessary since one Fourier coefficient
is not sufficient to do this integral numerically. For the \(u^1\)
case we do the integral numerically as part of the inner product.
With the correct right hand side assembled we can solve the
linear system of equations
u_hat = Function(T)
Sol1 = SolverGeneric1NP(mats)
u_hat = Sol1(f_hat, u_hat)
# case k = 0
u0_hat = Function(T0)
if comm.Get_rank() == 0:
Sol0 = SolverGeneric1NP(mats0)
u0_hat = Sol0(f0_hat, u0_hat)
comm.Bcast(u0_hat, root=0)
Having found the solution in spectral space all that is left is to transform it back to real space.
# Transform back to real space. Broadcast 1D solution
sl = T.local_slice(False)
uj = u_hat.backward() + u0_hat.backward()[:, sl[1]]
Postprocessing¶
The solution can now be compared with the exact solution through
ue = Array(T, buffer=ue)
print('Error =', np.linalg.norm(uj-ue))
# ---> Error = 7.45930806417765e-15
We can also get the gradient of the solution. For this we need a space without boundary conditions, and a vector space
TT = T.get_orthogonal()
V = VectorTensorProductSpace(TT)
Notice that we do not have the solution in one single space
in spectral space, since it is a combination of u_hat and
u0_hat. For this reason we first transform the solution from
real space uj to the new orthogonal space TT
ua = Array(TT, buffer=uj)
uh = ua.forward()
With the solution as a Function we can simply project
the gradient to V
dv = project(grad(uh), V)
du = dv.backward()
Note that the gradient du now contains the contravariant components
of the covariant basis vector b. The basis vector b is not normalized
(it’s length is not unity).
b = T.coors.get_covariant_basis()
The basis vectors are, in fact
and we see that they are given in terms of the Cartesian unit vectors. The gradient we have computed is (and yes, it should be \(r^2\) because we do not have unit vectors)
Now it makes sense to plot the solution and its gradient in Cartesian instead of computational coordinates. To this end we need to project the gradient to a Cartesian basis
We compute the Cartesian gradient by assembling (28) on the computational grid
ui, vi = TT.local_mesh(True)
bij = np.array(sp.lambdify(psi, b)(ui, vi))
gradu = du[0]*bij[0] + du[1]*bij[1]
Because of the way the vectors are stored, gradu[0] will now
contain \(\nabla u \cdot \mathbf{i}\) and
gradu[1] will contain \(\nabla u \cdot \mathbf{j}\).
To validate we compute the exact gradient and compute
the error norm
gradue = Array(V, buffer=list(b[0]*ue.diff(theta, 1)/r**2 + b[1]*ue.diff(r, 1)))
#or alternatively
#gradue = Array(V, buffer=grad(u).tosympy(basis=ue, psi=psi))
print('Error gradient', np.linalg.norm(gradu-gradue))
# ---> Error gradient 1.0856774538980375e-08
We now refine the solution to make it look better, and plot on the unit disc.
u_hat2 = u_hat.refine([N*3, N*3])
u0_hat2 = u0_hat.refine([1, N*3])
sl = u_hat2.function_space().local_slice(False)
ur = u_hat2.backward() + u0_hat2.backward()[:, sl[1]]
# Wrap periodic plot around since it looks nicer
xx, yy = u_hat2.function_space().local_curvilinear_mesh()
xp = np.vstack([xx, xx[0]])
yp = np.vstack([yy, yy[0]])
up = np.vstack([ur, ur[0]])
# For vector no need to wrap around and no need to refine:
xi, yi = TT.local_curvilinear_mesh()
# plot
plt.figure()
plt.contourf(xp, yp, up)
plt.quiver(xi, yi, gradu[0], gradu[1], scale=40, pivot='mid', color='white')
plt.colorbar()
plt.title('Helmholtz - unitdisc')
plt.xticks([])
plt.yticks([])
plt.axis('off')
plt.show()
Solution of Helmholtz equation, with gradient¶
Demo - Helmholtz equation on the unit sphere¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. This is a demonstration of how the Python module shenfun can be used to solve the Helmholtz equation on a unit sphere, using spherical coordinates. This demo is implemented in a single Python file sphere_helmholtz.py. If requested the solver will run in parallel using MPI.
Helmholtz on the unit sphere¶
Helmholtz equation¶
The Helmholtz equation is given as
where \(u(\boldsymbol{x})\) is the solution, \(f(\boldsymbol{x})\) is a function and \(\alpha\) a constant. We use spherical coordinates \((\theta, \phi)\), defined as
which (with \(r=1\)) leads to a 2D Cartesian product mesh \((\theta, \phi) \in (0, \pi) \times [0, 2\pi)\) suitable for numerical implementations. There are no boundary conditions on the problem under consideration. However, with the chosen Cartesian mesh, periodic boundary conditions are required for the \(\phi\)-direction. As such, the \(\phi\)-direction will use a Fourier basis \(\exp(\imath k \phi)\).
A regular Chebyshev or Legendre basis \(\psi_j(\theta) = \gamma_j(2\theta/\pi-1)\) will be used for the \(\theta\)-direction, where \(\gamma_j\) could be either the Chebyshev polynomial of first kind \(T_j\) or the Legendre polynomial \(L_j\). Note the mapping from real coordinates \(\theta\) to computational coordinates in domain \([-1, 1]\).
The spherical basis functions are as such
and we look for solutions
A discrete Fourier approximation space with \(N\) basis functions is then
where \(K = \{-N/2, -N/2+1, \ldots, N/2-1\}\). For this demo we assume that the solution is complex, and as such there is no simplification possible for Hermitian symmetry.
The following approximation space is used for the \(\theta\)-direction
and the variational formulation of the problem reads: find \(u \in V^N \otimes V_F^N\) such that
Note that integration over the domain is done using spherical coordinates with an integral measure of \(d\sigma=\sin \theta d\theta d\phi\).
Implementation in shenfun¶
A complete implementation is found in the file sphere_helmholtz.py. Here we give a brief explanation for the implementation. Start by importing all functionality from shenfun and sympy, where Sympy is required for handeling the spherical coordinates.
from shenfun import *
import sympy as sp
# Define spherical coordinates with unit radius
r = 1
theta, phi = sp.symbols('x,y', real=True, positive=True)
psi = (theta, phi)
rv = (r*sp.sin(theta)*sp.cos(phi), r*sp.sin(theta)*sp.sin(phi), r*sp.cos(theta))
Note that the position vector rv has three components (for \((x, y, z)\))
even though the computational domain is only 2D.
Also note that Sympy symbols are both positive and real, and \(\theta\) is
chosen to be along the first axis and \(\phi\) second. This has to agree with
the next step, which is the creation of tensorproductspaces
\(V^N \otimes V_F^N\).
N, M = 40, 30
L0 = Basis(N, 'C', domain=(0, np.pi))
F1 = Basis(M, 'F', dtype='D')
T = TensorProductSpace(comm, (L0, F1), coordinates=(psi, rv))
Spherical coordinates are ensured by feeding coordinates=(psi, rv)
to TensorProductSpace. Operators like div()
grad() and curl() will now work on
items of Function, TestFunction and
TrialFunction using a spherical coordinate system.
To define the equation (8) we first declare these test- and trialfunctions, and then use code that is very similar to the mathematics.
alpha = 2
v = TestFunction(T)
u = TrialFunction(T)
mats = inner(v, -div(grad(u))+alpha*u)
Here mats will be a list containing several tensor product
matrices in the form of
TPMatrix. Since there is only one directions with
non-diagonal matrices (\(\theta\)-direction) we
can use the generic SolverGeneric1NP solver.
Note that some of the non-diagonal matrices will be dense,
which is a weakness of the current method. Also note
that with Legendre one can use integration by parts
instead
mats = inner(grad(v), grad(u))
mats += [inner(v, alpha*u)]
To solve the problem we also need to define the function \(f(\theta, r)\).
To this end we use sympy and the method of
manufactured solution to define a possible solution ue,
and then compute f exactly using exact differentiation. We use
the spherical harmonics function
to define an analytical solution
# Manufactured solution
alpha = 2
sph = sp.functions.special.spherical_harmonics.Ynm
ue = sph(6, 3, theta, phi)
# Compute the right hand side on the quadrature mesh
# That is, compute f = -div(grad(ue)) + alpha*ue
f = (-div(grad(u))+alpha*u).tosympy(basis=ue, psi=psi)
fj = Array(T, buffer=f)
# Take scalar product
f_hat = Function(T)
f_hat = inner(v, fj, output_array=f_hat)
u_hat = Function(T)
Sol = SolverGeneric1NP(mats)
u_hat = Sol(f_hat, u_hat)
Having found the solution in spectral space all that is left is to transform it back to real space.
uj = u_hat.backward()
uq = Array(T, buffer=ue)
print('Error =', np.linalg.norm(uj-uq))
Leading to
Error = 8.383877617440085e-10
Postprocessing¶
We can refine the solution to make it look better, and plot on the unit sphere using mayavi, leading to Figure Helmholtz on the unit sphere.
u_hat2 = u_hat.refine([N*2, M*2])
ur = u_hat2.backward()
from mayavi import mlab
xx, yy, zz = u_hat2.function_space().local_curvilinear_mesh()
# Wrap periodic direction around
if T.bases[1].domain == (0, 2*np.pi):
xx = np.hstack([xx, xx[:, 0][:, None]])
yy = np.hstack([yy, yy[:, 0][:, None]])
zz = np.hstack([zz, zz[:, 0][:, None]])
ur = np.hstack([ur, ur[:, 0][:, None]])
mlab.mesh(xx, yy, zz, scalars=ur.imag, colormap='jet')
mlab.show()
Demo - Kuramato-Sivashinsky equation¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. This is a demonstration of how the Python module shenfun can be used to solve the time-dependent, nonlinear Kuramato-Sivashinsky equation, in a doubly periodic domain. The demo is implemented in a single Python file KuramatoSivashinsky.py, and it may be run in parallel using MPI.
The Kuramato-Sivashinsky equation¶
Movie showing the evolution of the solution \(u\) from Eq. (1).
Model equation¶
The Kuramato-Sivashinsky (KS) equation is known for its chaotic bahaviour, and it is often used in study of turbulence or turbulent combustion. We will here solve the KS equation in a doubly periodic domain \([-30\pi, 30\pi]^2\), starting from a single Gaussian pulse
Spectral Galerkin method¶
The PDE in (1) can be solved with many different numerical methods. We will here use the shenfun software and this software makes use of the spectral Galerkin method. Being a Galerkin method, we need to reshape the governing equations into proper variational forms, and this is done by multiplying (1) with the complex conjugate of a proper test function and then integrating over the domain. To this end we use testfunction \(v\in V(\Omega)\), where \(V(\Omega)\) is some suitable function space, and obtain
Note that the overline is used to indicate a complex conjugate, whereas \(w\) is a weight function. The function \(u\) is now to be considered a trial function, and the integrals over the domain are often referred to as inner products. With inner product notation
the variational problem can be formulated as
The space and time discretizations are still left open. There are numerous different approaches that one could take for discretizing in time. Here we will use a fourth order exponential Runge-Kutta method.
Discretization¶
We discretize the model equation in space using continuously differentiable Fourier basis functions
where \(l\) is the wavenumber, and \(\underline{l}=\frac{2\pi}{L}l\) is the scaled wavenumber, scaled with domain length \(L\) (here \(60\pi\)). Since we want to solve these equations on a computer, we need to choose a finite number of test functions. A discrete function space \(V^N\) can be defined as
where \(N\) is chosen as an even positive integer and \(\boldsymbol{l} = (-N/2, -N/2+1, \ldots, N/2-1)\). And now, since \(\Omega\) is a two-dimensional domain, we can create a tensor product of two such one-dimensional spaces:
where \(\boldsymbol{N} = (N, N)\). Obviously, it is not necessary to use the same number (\(N\)) of basis functions for each direction, but it is done here for simplicity. A 2D tensor product basis function is now defined as
where the indices for \(y\)-direction are \(\underline{m}=\frac{2\pi}{L}m\), and \(\boldsymbol{m}\) is the same set as \(\boldsymbol{l}\) due to using the same number of basis functions for each direction. One distinction, though, is that for the \(y\)-direction expansion coefficients are only stored for \(m=(0, 1, \ldots, N/2)\) due to Hermitian symmetry (real input data).
We now look for solutions of the form
The expansion coefficients \(\hat{u}_{lm}\) can be related directly to the solution \(u(x, y)\) using Fast Fourier Transforms (FFTs) if we are satisfied with obtaining the solution in quadrature points corresponding to
Note that these points are different from the standard (like \(2\pi j/N\)) since the domain is set to \([-30\pi, 30\pi]^2\) and not the more common \([0, 2\pi]^2\). We now have
where \(\mathcal{F}_x^{-1}\) is the inverse Fourier transform along direction \(x\), for all \(j \in \boldsymbol{j}\). Note that the two inverse FFTs are performed sequentially, one direction at the time, and that there is no scaling factor due the definition used for the inverse Fourier transform:
Note that this differs from the definition used by, e.g., Numpy.
The inner products used in Eq. (4) may be computed using forward FFTs (using weight functions \(w=1/L\)):
From this we see that the variational forms may be written in terms of the Fourier transformed \(\hat{u}\). Expanding the exact derivatives of the nabla operator, we have
and as such the equation to be solved for each wavenumber can be found directly as
Implementation¶
The model equation (1) is implemented in shenfun using Fourier basis functions for both \(x\) and \(y\) directions. We start the solver by implementing necessary functionality from required modules like Numpy, Sympy matplotlib and mpi4py, in addition to shenfun:
from sympy import symbols, exp, lambdify
import numpy as np
import matplotlib.pyplot as plt
from mpi4py import MPI
from shenfun import *
The size of the problem (in real space) is then specified, before creating
the TensorProductSpace, which is using a tensor product of two Fourier bases as
basis functions. We also
create a VectorTensorProductSpace, since this is required for computing the
gradient of the scalar field u. The gradient is required for the nonlinear
term.
# Size of discretization
N = (128, 128)
comm = MPI.COMM_WORLD
K0 = Basis(N[0], 'F', domain=(-30*np.pi, 30*np.pi), dtype='D')
K1 = Basis(N[1], 'F', domain=(-30*np.pi, 30*np.pi), dtype='d')
T = TensorProductSpace(comm, (K0, K1), **{'planner_effort': 'FFTW_MEASURE'})
TV = VectorTensorProductSpace([T, T])
Test and trialfunctions are required for assembling the variational forms:
u = TrialFunction(T)
v = TestFunction(T)
and some arrays are required to hold the solution. We also create an array
gradu, that will be used to compute the gradient in the nonlinear term.
Finally, the wavenumbers are collected in list K. Here one feature is worth
mentioning. The gradient in spectral space can be computed as 1j*K*U_hat.
However, since this is an odd derivative, and we are using an even number N
for the size of the domain, the highest wavenumber must be set to zero. This is
the purpose of the last keyword argument to local_wavenumbers below.
U = Array(T)
U_hat = Function(T)
gradu = Array(TV)
K = np.array(T.local_wavenumbers(True, True, eliminate_highest_freq=True))
Note that using this K in computing derivatives has the same effect as
achieved by symmetrizing the Fourier series by replacing the first sum below
with the second when computing odd derivatives.
Here \(\sideset{}{'}\sum\) means that the first and last items in the sum are divided by two. Note that the two sums are equal as they stand (due to aliasing), but only the latter (known as the Fourier interpolant) gives the correct (zero) derivative of the basis with the highest wavenumber.
Sympy is used to generate an initial condition, as stated in Eq (1)
# Use sympy to set up initial condition
x, y = symbols("x,y")
ue = exp(-0.01*(x**2+y**2))
ul = lambdify((x, y), ue, 'numpy')
Shenfun has a few integrators implemented in the integrators
submodule. Two such integrators are the 4th order explicit Runge-Kutta method
RK4, and the exponential 4th order Runge-Kutta method ETDRK4. Both these
integrators need two methods provided by the problem being solved, representing
the linear and nonlinear terms in the problem equation. We define two methods
below, called LinearRHS and NonlinearRHS
def LinearRHS(self):
# Assemble diagonal bilinear forms
L = -(inner(div(grad(u))+div(grad(div(grad(u)))), v))
return L
def NonlinearRHS(self, U, U_hat, dU):
# Assemble nonlinear term
global gradu
gradu = TV.backward(1j*K*U_hat, gradu)
dU = T.forward(0.5*(gradu[0]*gradu[0]+gradu[1]*gradu[1]), dU)
return -dU
The code should, hopefully, be self-explanatory.
All that remains now is to initialize the solution arrays and to setup the
integrator plus some plotting functionality for visualizing the results. Note
that visualization is only nice when running the code in serial. For parallel,
it is recommended to use HDF5File, to store intermediate results to the HDF5
format, for later viewing in, e.g., Paraview.
The solution is initialized as
#initialize
X = T.local_mesh(True)
U[:] = ul(*X)
U_hat = T.forward(U, U_hat)
And we also create an update function for plotting intermediate results with a cool colormap:
# Integrate using an exponential time integrator
plt.figure()
cm = plt.get_cmap('hot')
image = plt.contourf(X[0], X[1], U, 256, cmap=cm)
plt.draw()
plt.pause(1e-6)
count = 0
def update(u, u_hat, t, tstep, **params):
global count
if tstep % params['plot_step'] == 0 and params['plot_step'] > 0:
u = T.backward(u_hat, u)
image.ax.clear()
image.ax.contourf(X[0], X[1], U, 256, cmap=cm)
plt.pause(1e-6)
count += 1
plt.savefig('Kuramato_Sivashinsky_N_{}_{}.png'.format(N[0], count))
Now all that remains is to create the integrator and call it
if __name__ == '__main__':
par = {'plot_step': 100}
dt = 0.01
end_time = 100
integrator = ETDRK4(T, L=LinearRHS, N=NonlinearRHS, update=update, **par)
#integrator = RK4(T, L=LinearRHS, N=NonlinearRHS, update=update, **par)
integrator.setup(dt)
U_hat = integrator.solve(U, U_hat, dt, (0, end_time))
Demo - Stokes equations¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. The Stokes equations describe the flow of highly viscous fluids. This is a demonstration of how the Python module shenfun can be used to solve Stokes equations using a mixed (coupled) basis in a 3D tensor product domain. We assume homogeneous Dirichlet boundary conditions in one direction and periodicity in the remaining two. The solver described runs with MPI without any further considerations required from the user. The solver assembles a block matrix with sparsity pattern as shown below for the Legendre basis.
Coupled block matrix for Stokes equations¶
Model problem¶
Stokes equations¶
The Stokes equations are given in strong form as
where \(\mathbf{u}\) and \(p\) are, respectively, the fluid velocity vector and pressure, and the domain \(\Omega = [0, 2\pi]^2 \times [-1, 1]\). The flow is assumed periodic in \(x\) and \(y\)-directions, whereas there is a no-slip homogeneous Dirichlet boundary condition on \(\mathbf{u}\) on the boundaries of the \(z\)-direction, i.e., \(\mathbf{u}(x, y, \pm 1) = (0, 0, 0)\). (Note that we can configure shenfun with non-periodicity in any of the three directions. However, since we are to solve linear algebraic systems in the non-periodic direction, there is a speed benefit from having the nonperiodic direction last. This has to do with Numpy using a C-style row-major storage of arrays by default.) The right hand side vector \(\mathbf{f}(\mathbf{x})\) is an external applied body force. The right hand side \(h\) is usually zero in the regular Stokes equations. Here we include it because it will be nonzero in the verification, which is using the method of manufactured solutions. Note that the final \(\int_{\Omega} p dx = 0\) is there because there is no Dirichlet boundary condition on the pressure and the system of equations would otherwise be ill conditioned.
To solve Stokes equations with the Galerkin method we need basis functions for both velocity and pressure. A Dirichlet basis will be used for velocity, whereas there is no boundary restriction on the pressure basis. For both three-dimensional bases we will use one basis function for the \(x\)-direction, \(\mathcal{X}(x)\), one for the \(y\)-direction, \(\mathcal{Y}(y)\), and one for the \(z\)-direction, \(\mathcal{Z}(z)\). And then we create three-dimensional basis functions like
The basis functions \(\mathcal{X}(x)\) and \(\mathcal{Y}(y)\) are chosen as Fourier exponentials, since these functions are periodic:
where \(\mathbf{l}^{N_0} = (-N_0/2, -N_0/2+1, \ldots, N_0/2-1)\) and \(\mathbf{m}^{N_1} = (-N_1/2, -N_1/2+1, \ldots, N_1/2-1)\). The size of the discretized problem in real physical space is \(\mathbf{N} = (N_0, N_1, N_2)\), i.e., there are \(N_0 \cdot N_1 \cdot N_2\) quadrature points in total.
The basis functions for \(\mathcal{Z}(z)\) remain to be decided. For the velocity we need homogeneous Dirichlet boundary conditions, and for this we use composite Legendre or Chebyshev polynomials
where \(\phi_n\) is the n’th Legendre or Chebyshev polynomial of the first kind. \(\mathbf{n}^{N_2-2} = (0, 1, \ldots, N_2-3)\), and the zero on \(\mathcal{Z}^0\) is there to indicate the zero value on the boundary.
The pressure basis that comes with no restrictions for the boundary is a little trickier. The reason for this has to do with inf-sup stability. The obvious choice of basis is the regular Legendre or Chebyshev basis, which is denoted as
The problem is that for the natural choice of \(n \in (0, 1, \ldots, N_2-1)\) there is a nullspace and one degree of freedom remains unresolved. It turns out that the proper choice for the pressure basis is simply (5) for \(n \in \mathbf{n}^{N_2-2}\). (Also remember that we have to fix \(\int_{\Omega} p dx = 0\).)
With given basis functions we obtain the spaces
and from these we create two different tensor product spaces
The velocity vector is using a mixed basis, such that we will look for solutions \(\mathbf{u} \in [W_0^{\mathbf{N}}]^3 \, (=W_0^{\mathbf{N}} \times W_0^{\mathbf{N}} \times W_0^{\mathbf{N}})\), whereas we look for the pressure \(p \in W^{\mathbf{N}}\). We now formulate a variational problem using the Galerkin method: Find \(\mathbf{u} \in [W_0^{\mathbf{N}}]^3\) and \(p \in W^{\mathbf{N}}\) such that
Here \(dx_w=w_xdxw_ydyw_zdz\) represents a weighted measure, with weights \(w_x(x), w_y(y), w_z(z)\). Note that it is only Chebyshev polynomials that make use of a non-constant weight \(w_x=1/\sqrt{1-x^2}\). The Fourier weights are \(w_y=w_z=1/(2\pi)\) and the Legendre weight is \(w_x=1\). The overline in \(\mathbf{\overline{v}}\) and \(\overline{q}\) represents a complex conjugate, which is needed here because the Fourier exponentials are complex functions.
Mixed variational form¶
Since we are to solve for \(\mathbf{u}\) and \(p\) at the same time, we formulate a mixed (coupled) problem: find \((\mathbf{u}, p) \in [W_0^{\mathbf{N}}]^3 \times W^{\mathbf{N}}\) such that
where bilinear (\(a\)) and linear (\(L\)) forms are given as
Note that the bilinear form will assemble to block matrices, whereas the right hand side linear form will assemble to block vectors.
Implementation¶
Preamble¶
We will solve the Stokes equations using the shenfun Python module. The first thing needed is then to import some of this module’s functionality plus some other helper modules, like Numpy and Sympy:
import os
import sys
import numpy as np
from mpi4py import MPI
from sympy import symbols, sin, cos
from shenfun import *
We use Sympy for the manufactured solution and Numpy for testing. MPI for
Python (mpi4py) is required for running the solver with MPI.
Manufactured solution¶
The exact solutions \(\mathbf{u}_e(\mathbf{x})\) and \(p(\mathbf{x})\) are chosen to satisfy boundary
conditions, and the right hand sides \(\mathbf{f}(\mathbf{x})\) and \(h(\mathbf{x})\) are then
computed exactly using Sympy. These exact right hand sides will then be used to
compute a numerical solution that can be verified against the manufactured
solution. The chosen solution with computed right hand sides are:
x, y, z = symbols('x,y,z')
uex = sin(2*y)*(1-z**2)
uey = sin(2*x)*(1-z**2)
uez = sin(2*z)*(1-z**2)
pe = -0.1*sin(2*x)*cos(4*y)
fx = uex.diff(x, 2) + uex.diff(y, 2) + uex.diff(z, 2) - pe.diff(x, 1)
fy = uey.diff(x, 2) + uey.diff(y, 2) + uey.diff(z, 2) - pe.diff(y, 1)
fz = uez.diff(x, 2) + uez.diff(y, 2) + uez.diff(z, 2) - pe.diff(z, 1)
h = uex.diff(x, 1) + uey.diff(y, 1) + uez.diff(z, 1)
Bases and tensor product spaces¶
Bases are created using the Basis() function. A choice of
polynomials between Legendre or Chebyshev can be made, and the size
of the domain is given
N = (40, 40, 40)
family = 'Legendre'
K0 = Basis(N[0], 'Fourier', dtype='D', domain=(0, 2*np.pi))
K1 = Basis(N[1], 'Fourier', dtype='d', domain=(0, 2*np.pi))
SD = Basis(N[2], family, bc=(0, 0))
ST = Basis(N[2], family)
ST.slice = lambda: slice(0, ST.N-2)
Note that the last line of code is there to ensure that only the first \(N_2-2\) coefficients are used, see discussion around Eq. (5). At the same time, we ensure that we are still using \(N_2\) quadrature points, the same as for the Dirichlet basis.
Next the one-dimensional spaces are used to create two tensor product spaces Q = \(W^{\mathbf{N}}\) and TD = \(W_0^{\mathbf{N}}\), one vector V = \([W_0^{\mathbf{N}}]^3\) and one mixed space VQ = V \(\times\) Q.
TD = TensorProductSpace(comm, (K0, K1, SD), axes=(2, 0, 1))
Q = TensorProductSpace(comm, (K0, K1, ST), axes=(2, 0, 1))
V = VectorTensorProductSpace(TD)
VQ = MixedTensorProductSpace([V, Q])
Note that we choose to transform axes in the order \(1, 0, 2\). This is to ensure that the fully transformed arrays are aligned in the non-periodic direction 2. And we need the arrays aligned in this direction, because this is the only direction where there are tensor product matrices that are non-diagonal. All Fourier matrices are, naturally, diagonal.
Test- and trialfunctions are created much like in a regular, non-mixed, formulation. However, one has to create one test- and trialfunction for the mixed space, and then split them up afterwards
up = TrialFunction(VQ)
vq = TestFunction(VQ)
u, p = up
v, q = vq
With the basisfunctions in place we may assemble the different blocks of the final coefficient matrix. Since Legendre is using a constant weight function, the equations may also be integrated by parts to obtain a symmetric system:
if family.lower() == 'chebyshev':
A = inner(v, div(grad(u)))
G = inner(v, -grad(p))
else:
A = inner(grad(v), -grad(u))
G = inner(div(v), p)
D = inner(q, div(u))
Note
The inner products may also be assembled with one single line, as
AA = inner(v, div(grad(u))) + inner(v, -grad(u)) + inner(q, div(u))
However, this requires addition, not subtraction, of inner products and it is not possible to move the negation to -inner(v, grad(u))
The assembled subsystems A, G and D are lists containg the different blocks of
the complete, coupled matrix. A actually contains 6
tensor product matrices of type TPMatrix. The first two
matrices are for vector component zero of the test function v[0] and
trial function u[0], the
matrices 2 and 3 are for components 1 and the last two are for components
2. The first two matrices are as such for
A[0:2] = inner(v[0], div(grad(u[0])))
Breaking it down the inner product is mathematically
If we now use test function \(\mathbf{v}[0]\)
and trialfunction
where \(\hat{\mathbf{u}}\) are the unknown degrees of freedom, and then insert these functions into (17), then we obtain after performing some exact evaluations over the periodic directions
Similarly for components 1 and 2 of the test and trial vectors, leading to 6 tensor
product matrices in total for A. Similarly, we get three components of G
and three of D.
Eliminating the Fourier diagonal matrices, we are left with block matrices like
Note that there will be one large block matrix \(H(l, m)\) for each Fourier wavenumber combination \((l, m)\). To solve the problem in the end we will need to loop over these wavenumbers and solve the assembled linear systems one by one. An example of the block matrix, for \(l=m=5\) and \(\mathbf{N}=(20, 20, 20)\) is given in Fig. Coupled block matrix for Stokes equations.
In the end we create a block matrix through
M = BlockMatrix(A+G+D)
The right hand side can easily be assembled since we have already defined the functions \(\mathbf{f}\) and \(h\), see Sec. Manufactured solution
# Get mesh (quadrature points)
X = TD.local_mesh(True)
# Get f and h on quad points
fh = Array(VQ, buffer=(fx, fy, fz, h))
f_, h_ = fh
# Compute inner products
fh_hat = Function(VQ)
f_hat, h_hat = fh_hat
f_hat = inner(v, f_, output_array=f_hat)
h_hat = inner(q, h_, output_array=h_hat)
In the end all that is left is to solve and compare with the exact solution.
# Solve problem
up_hat = M.solve(fh_hat, constraints=((3, 0, 0),))
up = up_hat.backward()
u_, p_ = up
# Exact solution
ux, uy, uz = Array(V, buffer=(uex, uey, uez))
pe = Array(Q, buffer=pe)
error = [comm.reduce(np.linalg.norm(ux-u_[0])),
comm.reduce(np.linalg.norm(uy-u_[1])),
comm.reduce(np.linalg.norm(uz-u_[2])),
comm.reduce(np.linalg.norm(pe-p_))]
print(error)
Note that solve has a keyword argument
constraints=((3, 0, 0),) that takes care of the restriction
\(\int_{\Omega} p dx = 0\) by indenting the row in M corresponding to the
first degree of freedom for the pressure. The value \((3, 0, 0)\)
indicates that pressure is
in block 3 of the block vector solution (the velocity vector holds
positions 0, 1 and 2), whereas the two zeros ensures that the first dof
(dof 0) should obtain value 0.
Complete solver¶
A complete solver can be found in demo Stokes3D.py.
Demo - Lid driven cavity¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. The lid driven cavity is a classical benchmark for Navier Stokes solvers. This is a demonstration of how the Python module shenfun can be used to solve the lid driven cavity problem with full spectral accuracy using a mixed (coupled) basis in a 2D tensor product domain. The demo also shows how to use mixed tensor product spaces for vector valued equations. Note that the regular lid driven cavity, where the top wall has constant velocity and the remaining three walls are stationary, has a singularity at the two upper corners, where the velocity is discontinuous. Due to their global nature, spectral methods are usually not very good at handling problems with discontinuities, and for this reason we will also look at a regularized lid driven cavity, where the top lid moves according to \((1-x)^2(1+x)^2\), thus removing the corner discontinuities.
Velocity vectors for \(Re=100\)¶
Bases and tensor product spaces¶
With the Galerkin method we need basis functions for both velocity and pressure, as well as for the nonlinear right hand side. A Dirichlet basis will be used for velocity, whereas there is no boundary restriction on the pressure basis. For both two-dimensional bases we will use one basis function for the \(x\)-direction, \(\mathcal{X}_k(x)\), and one for the \(y\)-direction, \(\mathcal{Y}_l(y)\). And then we create two-dimensional basis functions like
and solutions (trial functions) as
For the homogeneous Dirichlet boundary condition the basis functions \(\mathcal{X}_k(x)\) and \(\mathcal{Y}_l(y)\) are chosen as composite Legendre polynomials (we could also use Chebyshev):
where \(\boldsymbol{k}^{N_0-2} = (0, 1, \ldots, N_0-3)\), \(\boldsymbol{l}^{N_1-2} = (0, 1, \ldots, N_1-3)\) and \(N = (N_0, N_1)\) is the number of quadrature points in each direction. Note that \(N_0\) and \(N_1\) do not need to be the same. The basis funciton (3) satisfies the homogeneous Dirichlet boundary conditions at \(x=\pm 1\) and (4) the same at \(y=\pm 1\). As such, the basis function \(v_{kl}(x, y)\) satisfies the homogeneous Dirichlet boundary condition for the entire domain.
With shenfun we create these homogeneous spaces, \(D_0^{N_0}(x)=\text{span}\{L_k-L_{k+2}\}_{k=0}^{N_0-2}\) and \(D_0^{N_1}(y)=\text{span}\{L_l-L_{l+2}\}_{l=0}^{N_1-2}\) as
N = (51, 51)
family = 'Legendre' # or use 'Chebyshev'
quad = 'LG' # for Chebyshev use 'GC' or 'GL'
D0X = Basis(N[0], family, quad=quad, bc=(0, 0))
D0Y = Basis(N[1], family, quad=quad, bc=(0, 0))
The spaces are here the same, but we will use D0X in the \(x\)-direction and
D0Y in the \(y\)-direction. But before we use these bases in
tensor product spaces, they remain identical as long as \(N_0 = N_1\).
Special attention is required by the moving lid. To get a solution with nonzero boundary condition at \(y=1\) we need to add one more basis function that satisfies that solution. In general, a nonzero boundary condition can be added on both sides of the domain using the following basis
And then the unknown component \(N_1-2\) decides the value at \(y=1\), whereas the unknown at \(N_1-1\) decides the value at \(y=-1\). Here we only need to add the \(N_1-2\) component, but for generality this is implemented in shenfun using both additional basis functions. We create the space \(D_1^{N_1}(y)=\text{span}\{\mathcal{Y}_l(y)\}_{l=0}^{N_1-1}\) as
D1Y = Basis(N[1], family, quad=quad, bc=(1, 0))
where bc=(1, 0) fixes the values for \(y=1\) and \(y=-1\), respectively.
For a regularized lid driven cavity the velocity of the top lid is
\((1-x)^2(1+x)^2\) and not unity. To implement this boundary condition
instead, we can make use of sympy and
quite straight forward do
import sympy
x = sympy.symbols('x')
#D1Y = Basis(N[1], family, quad=quad, bc=((1-x)**2*(1+x)**2, 0))
Uncomment the last line to run the regularized boundary conditions. Otherwise, there is no difference at all between the regular and the regularized lid driven cavity implementations.
The pressure basis that comes with no restrictions for the boundary is a little trickier. The reason for this has to do with inf-sup stability. The obvious choice of basis functions are the regular Legendre polynomials \(L_k(x)\) in \(x\) and \(L_l(y)\) in the \(y\)-directions. The problem is that for the natural choice of \((k, l) \in \boldsymbol{k}^{N_0} \times \boldsymbol{l}^{N_1}\) there are nullspaces and the problem is not well-defined. It turns out that the proper choice for the pressure basis is simply the regular Legendre basis functions, but for \((k, l) \in \boldsymbol{k}^{N_0-2} \times \boldsymbol{l}^{N_1-2}\). The bases \(P^{N_0}(x)=\text{span}\{L_k(x)\}_{k=0}^{N_0-3}\) and \(P^{N_1}(y)=\text{span}\{L_l(y)\}_{l=0}^{N_1-3}\) are created as
PX = Basis(N[0], family, quad=quad)
PY = Basis(N[1], family, quad=quad)
PX.slice = lambda: slice(0, N[0]-2)
PY.slice = lambda: slice(0, N[1]-2)
Note that we still use these spaces with the same \(N_0 \cdot N_1\) quadrature points in real space, but the two highest frequencies have been set to zero.
We have now created all relevant function spaces for the problem at hand. It remains to combine these spaces into tensor product spaces, and to combine tensor product spaces into mixed (coupled) tensor product spaces. From the Dirichlet bases we create two different tensor product spaces, whereas one is enough for the pressure
With shenfun the tensor product spaces are created as
V1 = TensorProductSpace(comm, (D0X, D1Y))
V0 = TensorProductSpace(comm, (D0X, D0Y))
P = TensorProductSpace(comm, (PX, PY))
These tensor product spaces are all scalar valued. The velocity is a vector, and a vector requires a mixed vector basis like \(W_1^{\boldsymbol{N}} = V_1^{\boldsymbol{N}} \times V_0^{\boldsymbol{N}}\). The vector basis is created in shenfun as
W1 = VectorTensorProductSpace([V1, V0])
W0 = VectorTensorProductSpace([V0, V0])
Note that the second vector basis, \(W_0^{\boldsymbol{N}} = V_0^{\boldsymbol{N}} \times V_0^{\boldsymbol{N}}\), uses homogeneous boundary conditions throughout.
Mixed variational form¶
We now formulate a variational problem using the Galerkin method: Find \(\boldsymbol{u} \in W_1^{\boldsymbol{N}}\) and \(p \in P^{\boldsymbol{N}}\) such that
Note that we are using test functions \(\boldsymbol{v}\) with homogeneous boundary conditions.
The first obvious issue with Eq (11) is the nonlinearity. In other words we will need to linearize and iterate to be able to solve these equations with the Galerkin method. To this end we will introduce the solution on iteration \(k \in [0, 1, \ldots]\) as \(\boldsymbol{u}^k\) and compute the nonlinearity using only known solutions \(\int_{\Omega} (\nabla \cdot \boldsymbol{u}^k\boldsymbol{u}^k) \cdot \boldsymbol{v}\, dxdy\). Using further integration by parts we end up with the equations to solve for iteration number \(k+1\) (using \(\boldsymbol{u} = \boldsymbol{u}^{k+1}\) and \(p=p^{k+1}\) for simplicity)
Note that the nonlinear term may also be integrated by parts and evaluated as \(\int_{\Omega}-\boldsymbol{u}^k\boldsymbol{u}^k \, \colon \nabla \boldsymbol{v} \, dxdy\). All boundary integrals disappear since we are using test functions with homogeneous boundary conditions.
Since we are to solve for \(\boldsymbol{u}\) and \(p\) at the same time, we formulate a mixed (coupled) problem: find \((\boldsymbol{u}, p) \in W_1^{\boldsymbol{N}} \times P^{\boldsymbol{N}}\) such that
where bilinear (\(a\)) and linear (\(L\)) forms are given as
Note that the bilinear form will assemble to a block matrix, whereas the right hand side linear form will assemble to a block vector. The bilinear form does not change with the solution and as such it does not need to be reassembled inside an iteration loop.
The algorithm used to solve the equations are:
Set \(k = 0\)
Guess \(\boldsymbol{u}^0 = (0, 0)\)
while not converged:
assemble \(L((\boldsymbol{v}, q); \boldsymbol{u}^{k})\)
solve \(a((\boldsymbol{u}, p), (\boldsymbol{v}, q)) = L((\boldsymbol{v}, q); \boldsymbol{u}^{k})\) for \(\boldsymbol{u}^{k+1}, p^{k+1}\)
compute error = \(\int_{\Omega} (\boldsymbol{u}^{k+1}-\boldsymbol{u}^{k})^2 \, dxdy\)
if error \(<\) some tolerance then converged = True
\(k\) += \(1\)
Implementation of solver¶
We will now implement the coupled variational problem described in previous sections. First of all, since we want to solve for the velocity and pressure in a coupled solver, we have to create a mixed tensor product space \(VQ = W_1^{\boldsymbol{N}} \times P^{\boldsymbol{N}}\) that couples velocity and pressure
VQ = MixedTensorProductSpace([W1, P]) # Coupling velocity and pressure
We can now create test- and trialfunctions for the coupled space \(VQ\), and then split them up into components afterwards:
up = TrialFunction(VQ)
vq = TestFunction(VQ)
u, p = up
v, q = vq
Note
The test function v is using homogeneous Dirichlet boundary conditions even
though it is derived from VQ, which contains W1. It is currently not (and will
probably never be) possible to use test functions with inhomogeneous
boundary conditions.
With the basisfunctions in place we may assemble the different blocks of the final coefficient matrix. For this we also need to specify the kinematic viscosity, which is given here in terms of the Reynolds number:
Re = 100.
nu = 2./Re
A = inner(grad(v), -nu*grad(u))
G = inner(div(v), p)
D = inner(q, div(u))
Note
The inner products may also be assembled with one single line, as
AA = inner(grad(v), -nu*grad(u)) + inner(div(v), p) + inner(q, div(u))
But note that this requires addition, not subtraction, of inner products,
and it is not possible to move the negation to -inner(grad(v), nu*grad(u)).
This is because the inner() function returns a list of
tensor product matrices of type TPMatrix, and you cannot
negate a list.
The assembled subsystems A, G and D are lists containg the different blocks of
the complete, coupled, coefficient matrix. A actually contains 4
tensor product matrices of type TPMatrix. The first two
matrices are for vector component zero of the test function v[0] and
trial function u[0], the
matrices 2 and 3 are for components 1. The first two matrices are as such for
A[0:2] = inner(grad(v[0]), -nu*grad(u[0]))
Breaking it down the inner product is mathematically
We can now insert for test function \(\boldsymbol{v}[0]\)
and trialfunction
where \(\hat{\boldsymbol{u}}\) are the unknown degrees of freedom for the velocity vector. Notice that the sum over the second index runs all the way to \(N_1-1\), whereas the other indices runs to either \(N_0-3\) or \(N_1-3\). This is because of the additional basis functions required for the inhomogeneous boundary condition.
Inserting for these basis functions into (17), we obtain after a few trivial manipulations
We see that each tensor product matrix (both A[0] and A[1]) is composed as outer products of two smaller matrices, one for each dimension. The first tensor product matrix, A[0], is
where \(C\in \mathbb{R}^{N_0-2 \times N_1-2}\) and \(F \in \mathbb{R}^{N_0-2 \times N_1}\). Note that due to the inhomogeneous boundary conditions this last matrix \(F\) is actually not square. However, remember that all contributions from the two highest degrees of freedom (\(\hat{\boldsymbol{u}}[0]_{m,N_1-2}\) and \(\hat{\boldsymbol{u}}[0]_{m,N_1-1}\)) are already known and they can, as such, be moved directly over to the right hand side of the linear algebra system that is to be solved. More precisely, we can split the tensor product matrix into two contributions and obtain
where the first term on the right hand side is square and the second term is known and can be moved to the right hand side of the linear algebra equation system.
All the parts of the matrices that are to be moved to the right hand side can be extracted from A, G and D as follows
# Extract the boundary matrices
bc_mats = extract_bc_matrices([A, G, D])
These matrices are applied to the solution below (see BlockMatrix BM).
Furthermore, this leaves us with square submatrices (A, G, D), which make up a
symmetric block matrix
This matrix, and the matrix responsible for the boundary degrees of freedom, can be assembled from the pieces we already have as
M = BlockMatrix(A+G+D)
BM = BlockMatrix(bc_mats)
We now have all the matrices we need in order to solve the Navier Stokes equations. However, we also need some work arrays for iterations and we need to assemble the constant boundary contribution to the right hand side
# Create Function to hold solution. Use set_boundary_dofs to fix the degrees
# of freedom in uh_hat that determines the boundary conditions.
uh_hat = Function(VQ).set_boundary_dofs()
ui_hat = uh_hat[0]
# New solution (iterative)
uh_new = Function(VQ).set_boundary_dofs()
ui_new = uh_new[0]
# Compute the constant contribution to rhs due to nonhomogeneous boundary conditions
bh_hat0 = Function(VQ)
bh_hat0 = BM.matvec(-uh_hat, bh_hat0) # Negative because moved to right hand side
bi_hat0 = bh_hat0[0]
Note that bh_hat0 now contains the part of the right hand side that is
due to the non-symmetric part of assembled matrices. The appended
set_boundary_dofs() ensures the known boundary values of
the solution are fixed for ui_hat and ui_new.
The nonlinear right hand side also requires some additional attention. Nonlinear terms are usually computed in physical space before transforming to spectral. For this we need to evaluate the velocity vector on the quadrature mesh. We also need a rank 2 Array to hold the outer product \(\boldsymbol{u}\boldsymbol{u}\). The required arrays and spaces are created as
bh_hat = Function(VQ)
# Create arrays to hold velocity vector solution
ui = Array(W1)
# Create work arrays for nonlinear part
QT = MixedTensorProductSpace([W1, W0]) # for uiuj
uiuj = Array(QT)
uiuj_hat = Function(QT)
The right hand side \(L((\boldsymbol{v}, q);\boldsymbol{u}^{k});\) is computed in its
own function compute_rhs as
def compute_rhs(ui_hat, bh_hat):
global ui, uiuj, uiuj_hat, V1, bh_hat0
bh_hat.fill(0)
ui = W1.backward(ui_hat, ui)
uiuj = outer(ui, ui, uiuj)
uiuj_hat = uiuj.forward(uiuj_hat)
bi_hat = bh_hat[0]
#bi_hat = inner(v, div(uiuj_hat), output_array=bi_hat)
bi_hat = inner(grad(v), -uiuj_hat, output_array=bi_hat)
bh_hat += bh_hat0
return bh_hat
Here outer() is a shenfun function that computes the
outer product of two vectors and returns the product in a rank two
array (here uiuj). With uiuj forward transformed to uiuj_hat
we can assemble the linear form either as inner(v, div(uiuj_hat) or
inner(grad(v), -uiuj_hat). Also notice that the constant contribution
from the inhomogeneous boundary condition, bh_hat0,
is added to the right hand side vector.
Now all that remains is to guess an initial solution and solve iteratively until convergence. For initial solution we simply set the velocity and pressure to zero and solve the Stokes equations:
from scipy.sparse.linalg import splu
uh_hat, Ai = M.solve(bh_hat0, u=uh_hat, constraints=((2, 0, 0),), return_system=True) # Constraint for component 2 of mixed space
Alu = splu(Ai)
uh_new[:] = uh_hat
Note that the BlockMatrix given by M has a solve method that sets up
a sparse coefficient matrix Ai of size \(\mathbb{R}^{3(N_0-2)(N_1-2) \times 3(N_0-2)(N_1-2)}\),
and then solves using scipy.sparse.linalg.spsolve.
The matrix Ai is then pre-factored for reuse with splu.
Also note that the constraints=((2, 0, 0),) keyword argument
ensures that the pressure integrates to zero, i.e., \(\int_{\Omega} pdxdy=0\).
Here the number 2 tells us that block component 2 in the mixed space
(the pressure) should be integrated, dof 0 should be fixed, and it
should be fixed to 0.
With an initial solution from the Stokes equations we are ready to start iterating. However, for convergence it is necessary to add some underrelaxation \(\alpha\), and update the solution each time step as
where \(\hat{\boldsymbol{u}}^*\) and \(\hat{p}^*\) are the newly computed velocity
and pressure returned from M.solve. Without underrelaxation the solution
will quickly blow up. The iteration loop goes as follows
converged = False
count = 0
alfa = 0.5
while not converged:
count += 1
bh_hat = compute_rhs(ui_hat, bh_hat)
uh_new = M.solve(bh_hat, u=uh_new, constraints=((2, 0, 0),), Alu=Alu) # Constraint for component 2 of mixed space
error = np.linalg.norm(ui_hat-ui_new)
uh_hat[:] = alfa*uh_new + (1-alfa)*uh_hat
converged = abs(error) < 1e-10 or count >= 10000
print('Iteration %d Error %2.4e' %(count, error))
up = uh_hat.backward()
u, p = up
X = V0.local_mesh(True)
plt.figure()
plt.quiver(X[0], X[1], u[0], u[1])
The last three lines plots the velocity vectors that are shown in Figure Velocity vectors for Re=100. The solution is apparently nice and smooth, but hidden underneath are Gibbs oscillations from the corner discontinuities. This is painfully obvious when switching from Legendre to Chebyshev polynomials. With Chebyshev the same plot looks like Figure Velocity vectors for Re=100 using Chebyshev. However, choosing instead the regularized lid, the solutions will be nice and smooth, both for Legendre and Chebyshev polynomials.
Velocity vectors for Re=100 using Chebyshev¶
Complete solver¶
A complete solver can be found in demo NavierStokesDrivenCavity.py.
Demo - Rayleigh Benard¶
- Authors
Mikael Mortensen (mikaem at math.uio.no)
- Date
Jun 7, 2020
Summary. Rayleigh-Benard convection arise due to temperature gradients in a fluid. The governing equations are Navier-Stokes coupled (through buoyancy) with an additional temperature equation derived from the first law of thermodynamics, using a linear correlation between density and temperature.
This is a demonstration of how the Python module shenfun can be used to solve for these Rayleigh-Benard cells in a 2D channel with two walls of different temperature in one direction, and periodicity in the other direction. The solver described runs with MPI without any further considerations required from the user. Note that there is a more physically realistic 3D solver implemented within the spectralDNS project. To allow for some simple optimizations, the solver described in this demo has been implemented in a class in the RayleighBenardRk3.py module in the demo folder of shenfun. Below are two example solutions, where the first (movie) has been run at a very high Rayleigh number (Ra), and the lower image with a low Ra (laminar).
Temperature fluctuations in the Rayleigh Benard flow. The top and bottom walls are kept at different temperatures and this sets up the Rayleigh-Benard convection. The simulation is run at Ra =100,000, Pr =0.7 with 100 and 256 quadrature points in x and y-directions, respectively¶
Convection cells for a laminar flow. The simulation is run at Ra =100, Pr =0.7 with 40 and 128 quadrature points in x and y-directions, respectively¶
Model problem¶
The governing equations solved in domain \(\Omega=[-1, 1]\times [0, 2\pi]\) are
where \(\mathbf{u}(x, y, t) (= u\mathbf{i} + v\mathbf{j})\) is the velocity vector, \(p(x, y, t)\) is pressure, \(T(x, y, t)\) is the temperature, and \(\mathbf{i}\) and \(\mathbf{j}\) are the unity vectors for the \(x\) and \(y\)-directions, respectively.
The equations are complemented with boundary conditions \(\mathbf{u}(\pm 1, y, t) = (0, 0), \mathbf{u}(x, 2 \pi, t) = \mathbf{u}(x, 0, t), T(1, y, t) = 1, T(-1, y, t) = 0, T(x, 2 \pi, t) = T(x, 0, t)\). Note that these equations have been non-dimensionalized according to [PSS18], using dimensionless Rayleigh number \(Ra=g \alpha \Delta T h^3/(\nu \kappa)\) and Prandtl number \(Pr=\nu/\kappa\). Here \(g \mathbf{i}\) is the vector accelleration of gravity, \(\Delta T\) is the temperature difference between the top and bottom walls, \(h\) is the hight of the channel in \(x\)-direction, \(\nu\) is the dynamic viscosity coefficient, \(\kappa\) is the heat transfer coefficient and \(\alpha\) is the thermal expansion coefficient. Note that the governing equations have been non-dimensionalized using the free-fall velocityscale \(U=\sqrt{g \alpha \Delta T h}\). See [PSS18] for more details.
The governing equations contain a non-trivial coupling between velocity, pressure and temperature. This coupling can be simplified by eliminating the pressure from the equation for the wall-normal velocity component \(u\). We accomplish this by taking the Laplace of the momentum equation in wall normal direction, using the pressure from the divergence of the momentum equation \(\nabla^2 p = -\nabla \cdot \mathbf{H}+\partial T/\partial x\), where \(\mathbf{H} = (H_x, H_y) = (\mathbf{u} \cdot \nabla) \mathbf{u}\)
This equation is solved with \(u(\pm 1) = \partial u/\partial x(\pm 1) = 0\), where the latter follows from the divergence constraint. In summary, we now seem to have the following equations to solve:
However, we note that Eqs. (5) and (7) and (8) do not depend on pressure, and, apparently, on each time step we can solve (5) for \(u\), then (8) for \(v\) and finally (7) for \(T\). So what do we need (6) for? It appears to have become redundant from the elimination of the pressure from Eq. (5). It turns out that this is actually almost completely true, but (5), (7) and (8) can only provide closure for all but one of the Fourier coefficients. To see this it is necessary to introduce some discretization and basis functions that will be used to solve the problem. To this end we use \(P_N\), which is the set of all real polynomials of degree less than or equal to N and introduce the following finite-dimensional approximation spaces
Here \(\text{dim}(V_N^B) = N-4, \text{dim}(V_N^D) = \text{dim}(V_N^W) = N-2\), \(\text{dim}(V_N^T) = N\) and \(\text{dim}(V_M^F)=M\). We note that \(V_N^B, V_N^D, V_N^W\) and \(V_N^T\) can be used to approximate \(u, v, T\) and \(p\), respectively, in the \(x\)-direction. Also note that for \(V_M^F\) it is assumed that \(M\) is an even number.
We can now choose basis functions for the spaces, using Shen’s composite bases for either Legendre or Chebyshev polynomials. For the Fourier space the basis functions are already given. We leave the actual choice of basis as an implementation option for later. For now we use \(\phi^B(x), \phi^D(x), \phi^W\) and \(\phi^T(x)\) as common notation for basis functions in spaces \(V_N^B, V_N^D, V_N^W\) and \(V_N^T\), respectively.
To get the required approximation spaces for the entire domain we use tensor products of the one-dimensional spaces in (9)-(13)
Space \(W_{BF}\) has 2D tensor product basis functions \(\phi_k^B(x) \exp (\imath l y)\) and similar for the others. All in all we get the following approximations for the unknowns
where \(\boldsymbol{k}_{x} = \{0, 1, \ldots \text{dim}(V_N^x)-1\}, \, \text{for} \, x\in(B, D, W, T)\) and \(\boldsymbol{l} = \{-M/2, -M/2+1, \ldots, M/2-1\}\). Note that since the problem is defined in real space we will have Hermitian symmetry. This means that \(\hat{u}_{k, l} = \overline{\hat{u}}_{k, -l}\), with an overbar being a complex conjugate, and similar for \(\hat{v}_{kl}, \hat{p}_{kl}\) and \(\hat{T}_{kl}\). For this reason we can get away with solving for only the positive \(l\)’s, as long as we remember that the sum in the end goes over both positive and negative \(l's\). This is actually automatically taken care of by the FFT provider and is not much of an additional complexity in the implementation. So from now on \(\boldsymbol{l} = \{0, 1, \ldots, M/2\}\).
We can now take a look at why Eq. (6) is needed. If we first solve (5) for \(\hat{u}_{kl}(t), (k, l) \in \boldsymbol{k}_B \times \boldsymbol{l}\), then we can use (8) to solve for \(\hat{v}_{kl}(t)\). But here there is a problem. We can see this by creating the variational form required to solve (8) by the spectral Galerkin method. To this end make \(v=v_N\) in (8) a trial function, use \(u=u_N\) a known function and take the weighted inner product over the domain using test function \(q \in W_{DF}\)
Here we are using the inner product notation
where the exact form of the weighted scalar product depends on the chosen basis; Legendre has \(dx_w=dx\), Chebyshev \(dx_w = dx/\sqrt{1-x^2}\) and Fourier \(dy_w=dy/2/\pi\). The bases also have associated quadrature weights \(\{w(x_i) \}_{i=0}^{N-1}\) and \(\{w(y_j)\}_{j=0}^{M-1}\) that are used to approximate the integrals.
Inserting now for the known \(u_N\), the unknown \(v_N\), and \(q=\phi_m^D(x) \exp(\imath n y)\) the continuity equation becomes
The \(x\) and \(y\) domains are separable, so we can rewrite as
Now perform some exact manipulations in the Fourier direction and introduce the 1D inner product notation for the \(x\)-direction
By also simplifying the notation using summation of repeated indices, we get the following equation
Now \(l\) must equal \(n\) and we can simplify some more
We see that this equation can be solved for \(\hat{v}_{kl} \text{ for } (k, l) \in \boldsymbol{k}_D \times [1, 2, \ldots, M/2]\), but try with \(l=0\) and you hit division by zero, which obviously is not allowed. And this is the reason why Eq. (6) is still needed, to solve for \(\hat{v}_{k,0}\)! Fortunately, since \(\exp(\imath 0 y) = 1\), the pressure derivative \(\frac{\partial p}{\partial y} = 0\), and as such the pressure is still not required. When used only for Fourier coefficient 0, Eq. (6) becomes
There is still one more revelation to be made from Eq. (28). When \(l=0\) we get
and the only way to satisfy this is if \(\hat{u}_{k,0}=0\) for \(k\in\boldsymbol{k}_B\). Bottom line is that we only need to solve Eq. (5) for \(l \in \boldsymbol{l}/\{0\}\), whereas we can use directly \(\hat{u}_{k,0}=0 \text{ for } k \in \boldsymbol{k}_B\).
To sum up, with the solution known at \(t = t - \Delta t\), we solve
Equation |
For unknown |
With indices |
|---|---|---|
\(\hat{u}_{kl}(t)\) |
\((k, l) \in \boldsymbol{k}_B \times \boldsymbol{l}/\{0\}\) |
|
\(\hat{v}_{kl}(t)\) |
\((k, l) \in \boldsymbol{k}_D \times \boldsymbol{l}/\{0\}\) |
|
\(\hat{v}_{kl}(t)\) |
\((k, l) \in \boldsymbol{k}_D \times \{0\}\) |
|
\(\hat{T}_{kl}(t)\) |
\((k, l) \in \boldsymbol{k}_T \times \boldsymbol{l}\) |
Temporal discretization¶
The governing equations are integrated in time using a semi-implicit third order Runge Kutta method. This method applies to any generic equation
where \(\mathcal{N}\) and \(\mathcal{L}\) represents the nonlinear and linear contributions, respectively. With time discretized as \(t_n = n \Delta t, \, n = 0, 1, 2, ...\), the Runge Kutta method also subdivides each timestep into stages \(t_n^k = t_n + c_k \Delta t, \, k = (0, 1, .., N_s-1)\), where \(N_s\) is the number of stages. The third order Runge Kutta method implemented here uses three stages. On one timestep the generic equation (31) is then integrated from stage \(k\) to \(k+1\) according to
which should be rearranged with the unknowns on the left hand side and the knowns on the right hand side
For the three-stage third order Runge Kutta method the constants are given as
\(a_n/\Delta t\) |
\(b_n/\Delta t\) |
\(c_n / \Delta t\) |
|---|---|---|
8/15 |
0 |
0 |
5/12 |
−17/60 |
8/15 |
3/4 |
−5/12 |
2/3 |
For the spectral Galerkin method used by shenfun the governing equation
is first put in a weak variational form. This will change the appearence of
Eq. (33) slightly. If \(\phi\) is a test function, \(\psi^{k+1}\)
the trial function, and \(\psi^{k}\) a known function, then the variational form
of (33) is obtained by multiplying (33) by \(\phi\) and
integrating (with weights) over the domain
Equation (34) is the variational form implemented by shenfun for the
time dependent equations.
Shenfun implementation¶
To get started we need instances of the approximation spaces discussed in Eqs. (9) - (17). When the spaces are created we also need to specify the family and the dimension of each space. Here we simply choose Chebyshev and Fourier with 100 and 256 quadrature points in \(x\) and \(y\)-directions, respectively. We could replace ‘Chebyshev’ by ‘Legendre’, but the former is known to be faster due to the existence of fast transforms.
from shenfun import *
N, M = 100, 256
family = 'Chebyshev'
VB = Basis(N, family, bc='Biharmonic')
VD = Basis(N, family, bc=(0, 0))
VW = Basis(N, family)
VT = Basis(N, family, bc=(0, 1))
VF = Basis(M, 'F', dtype='d')
And then we create tensor product spaces by combining these bases (like in Eqs. (14)-(17)).
W_BF = TensorProductSpace(comm, (VB, VF)) # Wall-normal velocity
W_DF = TensorProductSpace(comm, (VD, VF)) # Streamwise velocity
W_WF = TensorProductSpace(comm, (VW, VF)) # No bc
W_TF = TensorProductSpace(comm, (WT, VF)) # Temperature
BD = MixedTensorProductSpace([W_BF, W_DF]) # Velocity vector
DD = MixedTensorProductSpace([W_DF, W_DF]) # Convection vector
Here the last two lines create mixed tensor product spaces by the
Cartesian products BD = W_BF \(\times\) W_DF and DD = W_DF \(\times\) W_DF.
These mixed space will be used to hold the velocity and convection vectors,
but we will not solve the equations in a coupled manner and continue in the
segregated approach outlined above.
We also need containers for the computed solutions. These are created as
u_ = Function(BD) # Velocity vector, two components
u_1 = Function(BD) # Velocity vector, previous step
T_ = Function(W_TF) # Temperature
T_1 = Function(W_TF) # Temperature, previous step
H_ = Function(DD) # Convection vector
H_1 = Function(DD) # Convection vector previous stage
# Need a container for the computed right hand side vector
rhs_u = Function(DD).v
rhs_T = Function(DD).v
In the final solver we will also use bases for dealiasing the nonlinear term, but we do not add that level of complexity here.
Wall-normal velocity equation¶
We implement Eq. (5) using the three-stage Runge Kutta equation (34). To this end we first need to declare some test- and trial functions, as well as some model constants
u = TrialFunction(W_BF)
v = TestFunction(W_BF)
a = (8./15., 5./12., 3./4.)
b = (0.0, -17./60., -5./12.)
c = (0., 8./15., 2./3., 1)
# Specify viscosity and time step size using dimensionless Ra and Pr
Ra = 10000
Pr = 0.7
nu = np.sqrt(Pr/Ra)
kappa = 1./np.sqrt(Pr*Ra)
dt = 0.1
# Get one solver for each stage of the RK3
solver = []
for rk in range(3):
mats = inner(div(grad(u)) - ((a[rk]+b[rk])*nu*dt/2.)*div(grad(div(grad(u)))), v)
solver.append(chebyshev.la.Biharmonic(*mats))
Notice the one-to-one resemblance with the left hand side of (34), where \(\psi^{k+1}\)
now has been replaced by \(\nabla^2 u\) (or div(grad(u))) from Eq. (5).
For each stage we assemble a list of tensor product matrices mats, and in chebyshev.la
there is available a very fast direct solver for exactly this type of (biharmonic)
matrices. The solver is created with chebyshev.la.Biharmonic(*mats), and here
the necessary LU-decomposition is carried out for later use and reuse on each time step.
The right hand side depends on the solution on the previous stage, and the convection on two previous stages. The linear part (first term on right hand side of (33)) can be assembled as
inner(div(grad(u_[0])) + ((a[rk]+b[rk])*nu*dt/2.)*div(grad(div(grad(u_[0])))), v)
The remaining parts \(\frac{\partial^2 H_y}{\partial x \partial y} - \frac{\partial^2 H_x}{\partial y\partial y} + \frac{\partial^2 T}{\partial y^2}\)
end up in the nonlinear \(\mathcal{N}\). The nonlinear convection term \(\boldsymbol{H}\) can be computed in many different ways.
Here we will make use of
the identity \((\boldsymbol{u} \cdot \nabla) \boldsymbol{u} = -\boldsymbol{u} \times (\nabla \times \boldsymbol{u}) + 0.5 \nabla\boldsymbol{u} \cdot \boldsymbol{u}\),
where \(0.5 \nabla \boldsymbol{u} \cdot \boldsymbol{u}\) can be added to the eliminated pressure and as such
be neglected. Compute \(\boldsymbol{H} = -\boldsymbol{u} \times (\nabla \times \boldsymbol{u})\) by first evaluating
the velocity and the curl in real space. The curl is obtained by projection of \(\nabla \times \boldsymbol{u}\)
to the no-boundary-condition space W_TF, followed by a backward transform to real space.
The velocity is simply transformed backwards.
Note
If dealiasing is required, it should be used here to create padded backwards transforms of the curl and the velocity,
before computing the nonlinear term in real space. The nonlinear product should then be forward transformed with
truncation. To get a space for dealiasing, simply use, e.g., W_BF.get_dealiased().
# Get a mask for setting Nyquist frequency to zero
mask = W_DF.get_mask_nyquist()
def compute_convection(u, H):
curl = project(Dx(u[1], 0, 1) - Dx(u[0], 1, 1), W_TF).backward()
ub = u.backward()
H[0] = W_DF.forward(-curl*ub[1])
H[1] = W_DF.forward(curl*ub[0])
H.mask_nyquist(mask)
return H
Note that the convection has a homogeneous Dirichlet boundary condition in the
non-periodic direction. With convection computed we can assemble \(\mathcal{N}\)
and all of the right hand side, using the function compute_rhs_u
def compute_rhs_u(u, T, H, rhs, rk):
v = TestFunction(W_BF)
H = compute_convection(u, H)
rhs[1] = 0
rhs[1] += inner(v, div(grad(u[0])) + ((a[rk]+b[rk])*nu*dt/2.)*div(grad(div(grad(u[0])))))
w0 = inner(v, Dx(Dx(H[1], 0, 1), 1, 1) - Dx(H[0], 1, 2))
w1 = inner(v, Dx(T, 1, 2))
rhs[1] += a[rk]*dt*(w0+w1)
rhs[1] += b[rk]*dt*rhs[0]
rhs[0] = w0+w1
rhs.mask_nyquist(mask)
return rhs
Note that we will only use rhs as a container, so it does not actually matter
which space it has here. We’re using .v to only access the Numpy array view of the Function.
Also note that rhs[1] contains the right hand side computed at stage k,
whereas rhs[0] is used to remember the old value of the nonlinear part.
Streamwise velocity¶
The streamwise velocity is computed using Eq. (28) and (29). For efficiency we
can here preassemble both matrices seen in (28) and reuse them every
time the streamwise velocity is being computed. We will also need the
wavenumber \(\boldsymbol{l}\), here retrived using W_BF.local_wavenumbers(scaled=True).
For (29) we preassemble the required Helmholtz solvers, one for
each RK stage.
# Assemble matrices and solvers for all stages
B_DD = inner(TestFunction(W_DF), TrialFunction(W_DF))
C_DB = inner(TestFunction(W_DF), Dx(TrialFunction(W_BF), 0, 1))
v0 = TestFunction(VD)
u0 = TrialFunction(VD)
solver0 = []
for rk in range(3):
mats0 = inner(v0, 2./(nu*(a[rk]+b[rk])*dt)*u0 - div(grad(u0)))
solver0.append(chebyshev.la.Helmholtz(*mats0))
# Allocate work arrays and variables
u00 = Function(VD)
b0 = np.zeros((2,)+u00.shape)
w00 = np.zeros_like(u00)
dudx_hat = Function(W_DF)
K = W_BF.local_wavenumbers(scaled=True)[1]
def compute_v(u, rk):
if comm.Get_rank() == 0:
u00[:] = u_[1, :, 0].real
dudx_hat = C_DB.matvec(u[0], dudx_hat)
with np.errstate(divide='ignore'):
dudx_hat = 1j * dudx_hat / K
u[1] = B_DD.solve(dudx_hat, u=u[1])
# Still have to compute for wavenumber = 0
if comm.Get_rank() == 0:
b0[1] = inner(v0, 2./(nu*(a[rk]+b[rj])*dt)*Expr(u00) + div(grad(u00)))
w00 = inner(v0, H_[1, :, 0])
b0[1] -= (2.*a/nu/(a[rk]+b[rk]))*w00
b0[1] -= (2.*b/nu/(a[rk]+b[rk]))*b0[0]
u00 = solver0[rk](u00, b0[1])
u[1, :, 0] = u00
b0[0] = w00
return u
Temperature¶
The temperature equation (2) is implemented using a Helmholtz solver. The main difficulty with the temperature is the non-homogeneous boundary condition that requires special attention. A non-zero Dirichlet boundary condition is implemented by adding two basis functions to the basis of the function space
with the approximation now becoming
The boundary condition requires
and
We find \(\hat{T}_{N-2, l}\) and \(\hat{T}_{N-1, l}\) using orthogonality. Multiply (40) and (42) by \(\exp(-\imath m y)\) and integrate over the domain \([0, 2\pi]\). We get
Using this approach it is easy to see that any inhomogeneous function \(T_N(\pm 1, y, t)\)
of \(y\) and \(t\) can be used for the boundary condition, and not just a constant.
To implement a non-constant Dirichlet boundary condition, the Basis function
can take any sympy function of (y, t), for exampel by replacing the
creation of VT by
import sympy as sp
y, t = sp.symbols('y,t')
f = 0.9+0.1*sp.sin(2*(y))*sp.exp(-t)
VT = Basis(N, family, bc=(0, f))
For merely a constant f or a y-dependency, no further action is required.
However, a time-dependent approach requires the boundary values to be
updated each time step. To this end there is the function
BoundaryValues.update_bcs_time, used to update the boundary values to the new time.
Here we will assume a time-independent boundary condition, but the
final implementation will contain the time-dependent option.
Due to the non-zero boundary conditions there are also a few additional things to be aware of. Assembling the coefficient matrices will also assemble the matrices for the two boundary test functions. That is, for the 1D mass matrix with \(u=\sum_{k=0}^{N-1}\hat{T}_k \phi^D_k\) and \(v=\phi^D_m\), we will have
where the first term on the right hand side is the regular mass matrix for a
homogeneous boundary condition, whereas the second term is due to the non-homogeneous.
Since \(\hat{T}_{N-2}\) and \(\hat{T}_{N-1}\) are known, the second term contributes to
the right hand side of a system of equations. All boundary matrices can be extracted
from the lists of tensor product matrices returned by inner. For
the temperature equation these boundary matrices are extracted using
extract_bc_matrices below. The regular solver is placed in the
solverT list, one for each stage of the RK3 solver.
solverT = []
lhs_mat = []
for rk in range(3):
matsT = inner(q, 2./(kappa*(a[rk]+b[rk])*dt)*p - div(grad(p)))
lhs_mat.append(extract_bc_matrices([matsT]))
solverT.append(chebyshev.la.Helmholtz(*matsT))
The boundary contribution to the right hand side is computed for each stage as
rhs_T = lhs_mat[rk][0].matvec(T_, rhs_T)
The complete right hand side of the temperature equations can be computed as
def compute_rhs_T(u, T, rhs, rk):
q = TestFunction(W_TF)
rhs[1] = inner(q, 2./(kappa*(a[rk]+b[rk])*dt)*Expr(T)+div(grad(T)))
rhs[1] -= lhs_mat[rk][0].matvec(T, w0)
ub = u.backward()
Tb = T.backward()
uT_ = BD.forward(ub*Tb)
w0[:] = 0
w0 = inner(q, div(uT_), output_array=w0)
rhs[1] -= (2.*a/kappa/(a[rk]+b[rk]))*w0
rhs[1] -= (2.*b/kappa/(a[rk]+b[rk]))*rhs[0]
rhs[0] = w0
rhs.mask_nyquist(mask)
return rhs
We now have all the pieces required to solve the Rayleigh Benard problem. It only remains to perform an initialization and then create a solver loop that integrates the solution forward in time.
# initialization
T_b = Array(W_TF)
X = W_TF.local_mesh(True)
T_b[:] = 0.5*(1-X[0]) + 0.001*np.random.randn(*T_b.shape)*(1-X[0])*(1+X[0])
T_ = T_b.forward(T_)
T_.mask_nyquist(mask)
def solve(t=0, tstep=0, end_time=1000):
while t < end_time-1e-8:
for rk in range(3):
rhs_u = compute_rhs_u(u_, T_, H_, rhs_u, rk)
u_[0] = solver[rk](u_[0], rhs_u[1])
if comm.Get_rank() == 0:
u_[0, :, 0] = 0
u_ = compute_v(u_, rk)
u_.mask_nyquist(mask)
rhs_T = compute_rhs_T(u_, T_, rhs_T, rk)
T_ = solverT[rk](T_, rhs_T[1])
T_.mask_nyquist(mask)
t += dt
tstep += 1
A complete solver implemented in a solver class can be found in
RayleighBenardRk3.py,
where some of the terms discussed in this demo have been optimized some more for speed.
Note that in the final solver it is also possible to use a \((y, t)\)-dependent boundary condition
for the hot wall. And the solver can also be configured to store intermediate results to
an HDF5 format that later can be visualized in, e.g., Paraview. The movie in the
beginning of this demo has been created in Paraview.
References¶
- PSS18
Ambrish Pandey, Janet D. Scheel, and Jörg Schumacher. Turbulent superstructures in rayleigh-bénard convection. Nature Communications, 9(1):2118, 2018. doi:10.1038/s41467-018-04478-0.
- She94
Jie Shen. Efficient spectral-galerkin method i. direct solvers of second- and fourth-order equations using legendre polynomials. SIAM Journal on Scientific Computing, 15(6):1489–1505, 1994. doi:10.1137/0915089.
- She95
Jie Shen. Efficient spectral-galerkin method ii. direct solvers of second- and fourth-order equations using chebyshev polynomials. SIAM Journal on Scientific Computing, 16(1):74–87, 1995. doi:10.1137/0916006.
- She97
Jie Shen. Efficient spectral-galerkin methods iii: polar and cylindrical geometries. SIAM Journal on Scientific Computing, 18(6):1583–1604, 1997. doi:10.1137/S1064827595295301.
- Waz08
Abdul-Majid Wazwaz. New travelling wave solutions to the boussinesq and the klein-gordon equations. Communications in Nonlinear Science and Numerical Simulation, 13(5):889–901, 2008. doi:10.1016/j.cnsns.2006.08.005.
